RE-2Y(St)YSWAY - fl OS Armoured LSLH

These cables are intended for transmission of analogue and digital signals. They allow transmission over long distances at high pulse rates. These cables are used in industrial installations (refineries, chemical plants, etc...) where there is a potential risk of mechanical damage.

Certification : European CE certification

Voltage : 0.6/1KV 300V

Low temperature : —15°C —5°C

High temperature : 70°C

Insulation material : PE

Sheath material : PVC

Shielding : Shield

Installation way : Occasional flexing Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

These cables are intended for transmission of analogue and digital signals. They allow transmission over long distances at high pulse rates. These cables are used in industrial installations (refineries, chemical plants, etc...) where there is a potential risk of mechanical damage.
02 Product characteristics

Fire retardant Low smoke
Low halogen Oil resistant
Good mechanical resistance to impacts
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

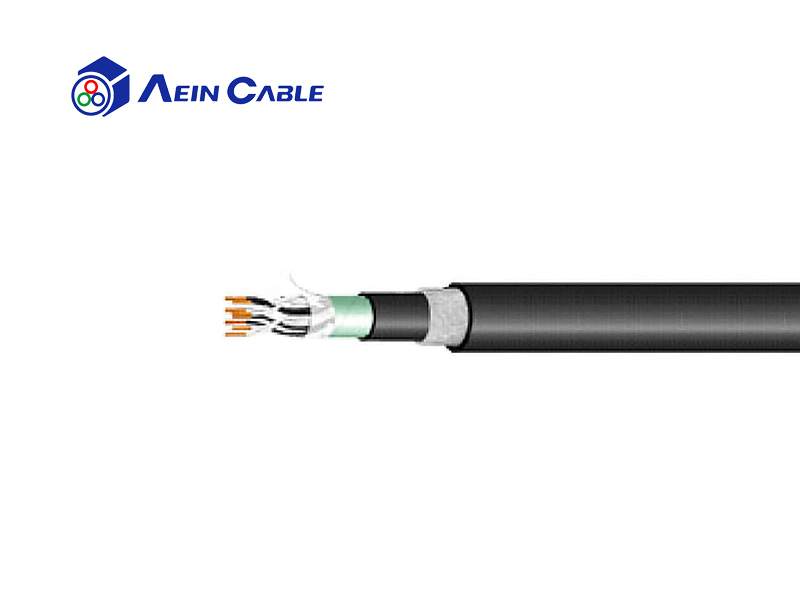

Product structure

Conductor material: Bare copper

Insulation: PE

Overall screen:Tinned copper drain wire + aluminium/polyester tape

Inner sheath: PVC

Armour type: Galvanized steel wires

Outer sheath: PVC

Operating voltage: 300 V

Operating temperature, range: -20 ... 60 °C

Max. conductor temperature in service: 70 °C

Keywords: European CE certification
