RE-Y(St)YSWAY-fl 70° C - CU/PVC/OSCR/PVC

These cables are used for control purposes (e.g. controlling of pumps, valves or engines) at chemistry and petrochemistry industry plants, power plants, natural gas and petroleum plants, etc... Instrumentation cables are not allowed to be directly connected to a low impedance source, e.g. public mains electricity supply. For applications which need heat resistance up to 105° C, RE-Yw(St)YwSWAYw cables are suitable. With blue sheath they are suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet locations; on racks, trays, in conduits.

Certification : European CE certification

Voltage : 500V

Low temperature : —5°C —15°C

High temperature : 70°C

Insulation material : PVC

Sheath material : PVC

Shielding : Shield

Installation way : Occasional flexing Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

These cables are used for control purposes (e.g. controlling of pumps, valves or engines) at chemistry and petrochemistry industry plants, power plants, natural gas and petroleum plants, etc... Instrumentation cables are not allowed to be directly connected to a low impedance source, e.g. public mains electricity supply. For applications which need heat resistance up to 105° C, RE-Yw(St)YwSWAYw cables are suitable. With blue sheath they are suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet locations; on racks, trays, in conduits.
02 Product characteristics

Rated voltage: 500 V.

Test voltage: Urms core-core: 2000 V;

Urms core-screen : 2000 V.

Temperature range: operation: - 30° C ~ + 70° C;

installation : - 5° C ~ + 50° C.

Min. bending radius: 10 x D.

Insulation resistance: min. 100 MΩ/km.

Mutual capacitance: (1 kHz) : max. 190 pF/m.
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

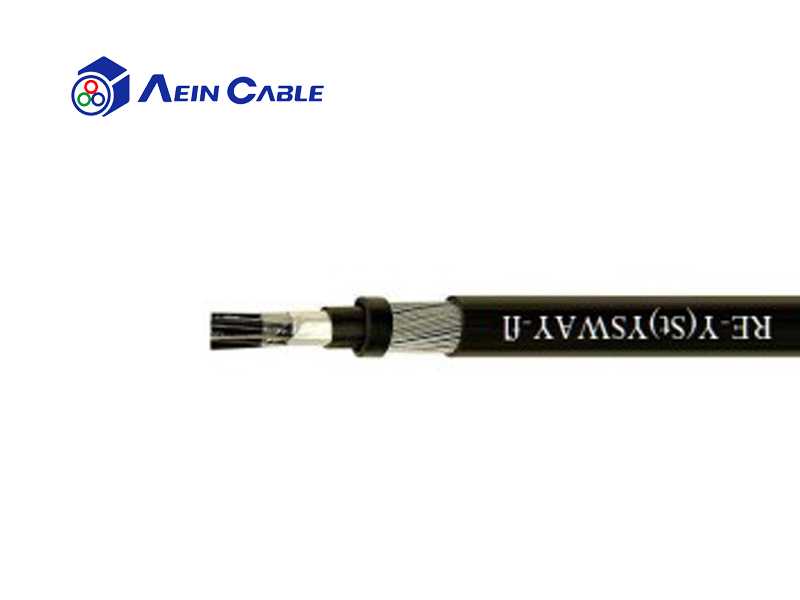

Product structure

Conductor: plain copper wire, stranded.

Insulation: PVC compound, 70° C .

Core identification: black cores are numbered 1-2-3... Other core configurations manufactured upon request.

Separator: polyester tape.

Inner sheath: PVC compound, 70° C.

Armour: galvanized round steel wire.

Screen: AL-PES tape over stranded tinned copper drain wire 0,50 mm².

Outer sheath: PVC compound, 70° C .

Sheath colour: black or blue.
