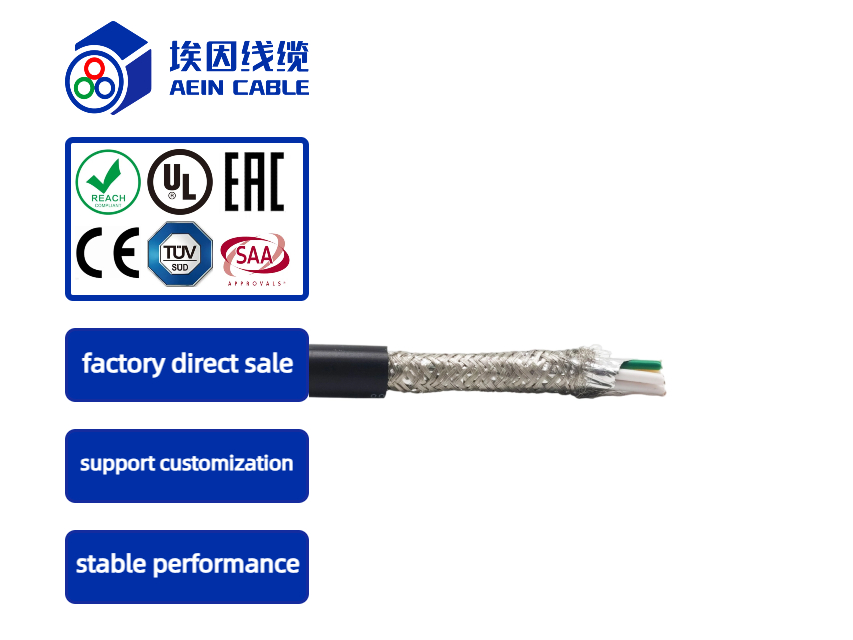

Product introduction
-
01 Product applicationPower, control and connection cables for drive systems with inverter technology for fixed and mobile installation, no tensile stress, no clear cable route. Suitable for dry, wet and wet indoor use. Outdoor use (black), but not underground.
-
02 Product characteristics ·Cables are resistant to specific types of oil
·Cable low coupling resistance· Through the best electromagnetic compatibility shielding, the inverter can not receive external electromagnetic interference and normal operation · The low capacitance of the cable makes the link cable between the motor and the inverter longer ·
Customization is acceptable for special construction, other sizes, core and jacket color products
-
03 Technical certification ·Comply with RoHS standards
· Compliance with Directive 2014/35/EU (" Low Voltage Directive ")CE · Low smoke halogen-free compliance :IEC/EN 60754-1-2,IEC/EN 61034-2 · Flame retardant according to IEC/EN 60332-1-2
Product structure
Conductor material: bare copper wire
Conductor grade: According to IEC60228 cl.5 standard
Core insulation :XLPE/PP
Core identification: conforming to DIN VDE0293 standard (GNYE color core)
Stranding: Core wire concentric stranding (3+3 type ground protection conductors are triangle evenly and symmetrically distributed between power lines)
Shielding: aluminum-plastic composite film wrapping, summer cover rate 100%: metal braided shielding
Outer sheath material :LSZH
Jacket color: black RAL9005
Rated voltage :Uo/U:0.6/1kV
Test voltage :3.5kV
Conductor resistance: According to IEC 60228 cl.5 standard
Insulation resistance :20 MΩ/km
Bending radius (fixed): below 12mm Ø:5 x d; Ø below 20 mm :7,5 x d; >20 mm Ø:10 x d
Bending radius (movement):12mm or less Ø10 x d; Ø below 20 mm :15 x d; >20 mm Ø: 20 x d
Temperature rating (fixed):-40°C/+90°C
Temperature rating (moving):-15°C/+90°C
Temperature :+70℃ operating temperature; +160 ° C Short-circuit temperature
Product identification
Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
Product parameter
