Product introduction
-

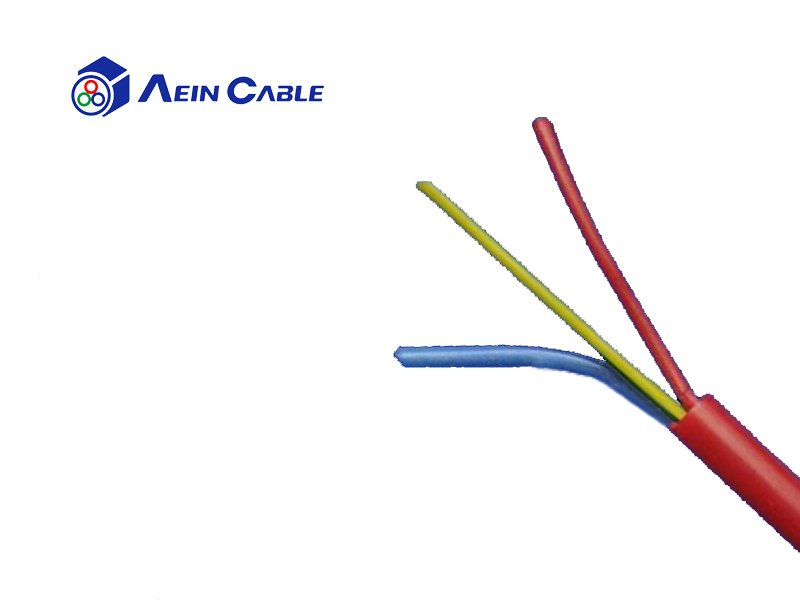

01 Product application SiHF CE Certified silicone rubber cable,Acts as a coordinated heat - and cold-resistant power in an electrical system﹑Control and connect cables for fixed and mobile installation, no clear cable path, no tensile stress. Suitable for dry, wet and wet rooms as well as outdoor use, no need to lay underground.
-
02 Product characteristics • High temperature resistance 180 ℃
• Fire no flame conduction, complete insulation, low smoke density • Silicone is resistant to ozone, oxygen, sea water and weather
• Hydrolysis resistance and UV resistance • from +100°℃ In the case of above and no air, the mechanical properties of the silicone wire will be reduced in advance, and adequate ventilation should be ensured
-
03 Technical certification • Conform to RoHs standard• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor material: Tinned copper stranded wire
Conductor class: In accordance with IEC 60228 cl. 5 standard
Insulation:EI2 Type B silicone rubber crosslinking mixture
Core identification: In accordance with DIN VDE 0293-308 Colored core
Stranding: Stranded in layers
Outer sheath:EM9 Type B silicone rubber crosslinking mixture
Jacket color: Black RAL9005(Optional)
Rated voltage:Uo/U: 300/500 V
Test voltage:2 KV
Conductor resistance:in +20 °C Under the Conform to IEC 60228 5 class
Insulation resistance:minimum20 MΩ x km
Min. bending radius fixed:4 x d
Min. bending radius moved:15 x d
Operat. temp. fixed min/max:-50 °C / + 180 °C (With adequate ventilation)
Halogen-free:Conform to IEC 60754-1
Corrosiveness:Conform to IEC 60754-2
Burning behavior:Self-extinguishing and flame retardant IEC60332-1-2
Product identification Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE
Product parameter
