Product introduction
-
01 Product application
These cables for power distribution are suitable for all types of low-voltage industrial connections, urban grids, building facilities, etc. It is especially suitable for high operating temperatures and situations requiring high resistance to solar radiation
and atmospheric media Situation. Good low temperature resistance and chemical resistance.
-
02 Product characteristics
· Flame retardant in accordance with IEC 60332-1-2
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing.
-
03 Technical certification· RoHS compliant
· Compliance with 2014/35/EU-Guideline(" Low Voltage Directive ")CE
· Comply with TUV certification

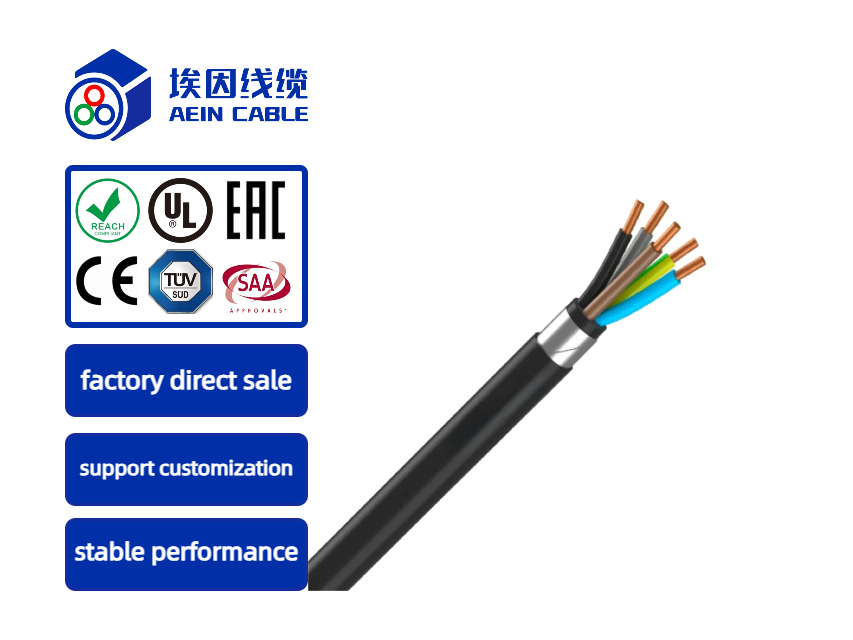

Product structure
Conductor material: bare copper wire
Conductor class: According to IEC 60228 cI.5 cI.2 Optional
Insulation :XLPE
Core identifier: two cores red and blue; Three core red yellow green; Four core red yellow green blue; Five core red yellow green blue yellow/green
Stranding: stranding in layers
Outer sheath :PVC
Jacket color: black, RAL9005 or grey RAL7001
Rated voltage :0.6/1 kV
Test voltage :3.5 kV
Conductor resistance: According to IEC 60228 cI.5
The rated temperature of the conductor is 90 °C
When short-circuiting (5s or less) occurs, the conductor temperature does not exceed 250°C
Small bending radius fixed :7.5 x d
Small bending radius movement :15 x d
Temperature rating fixed :-15°C/+90°C
Temperature rating shift :-5°C/+90°C
Flame retardant rating :IEC 60332-1-2
Standard :HD 603-3G IEC60502
Product identification: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
