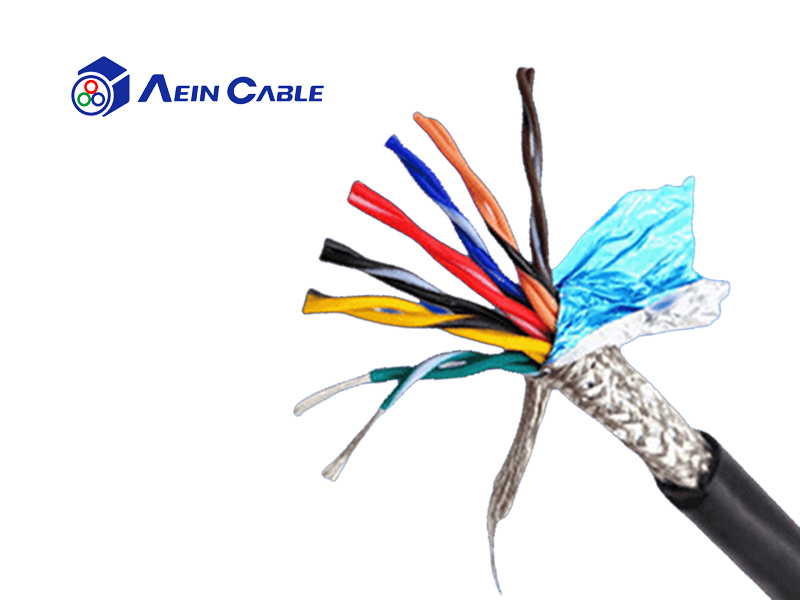

UL10660 UL Standard Cable

UL10660 UL Standard Cable

UL& Cul-certified PVC wiring cable for inner sheath wiring of electrical and electronic equipment in control cabinets.
inquiry
  • Product details
Product introduction
  • 01 Product application UL&CUL certified PVC Wiring cable for the inner sheath wiring of electrical and electronic equipment in the control cabinet.
  • 02 Product characteristics
    • "International" certified control cable (UL&CUL)
    All usual standard colours available

  • 03 Technical certification • Conform to RoHS standard
    Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
    We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

Conductor material: Tinned copper or bare copper stranded wire

Conductor class: acc. to UL758 Standard, acc. to IEC 60228 class 5

Core insulation:PVC,XLPE

Sheath:PVC

Core identification: different colors

Rated voltage:1000V

Test voltage:3000V

Conductor resistance:UL1581 ASTM class C

Minimum bending radius fixed:7.5x d

Minimum bending radius flexible:15x d

Operat. temp. fixed min/max:-15°C/105°C

Burning behavor: Self extinguishing and flame retardant IEC60332-1-2.UL - VW 1 and FT 1

Approvals:UL&CUL&CE

Product identification: E503807 ® AWM  Model number  specification  temperature  voltage  VW-1 or C® AWM I  A specification  temperature  voltage FT1 SHANGHAI AEIN  Model number  specification voltage CE
