Product introduction
-
01 Product application

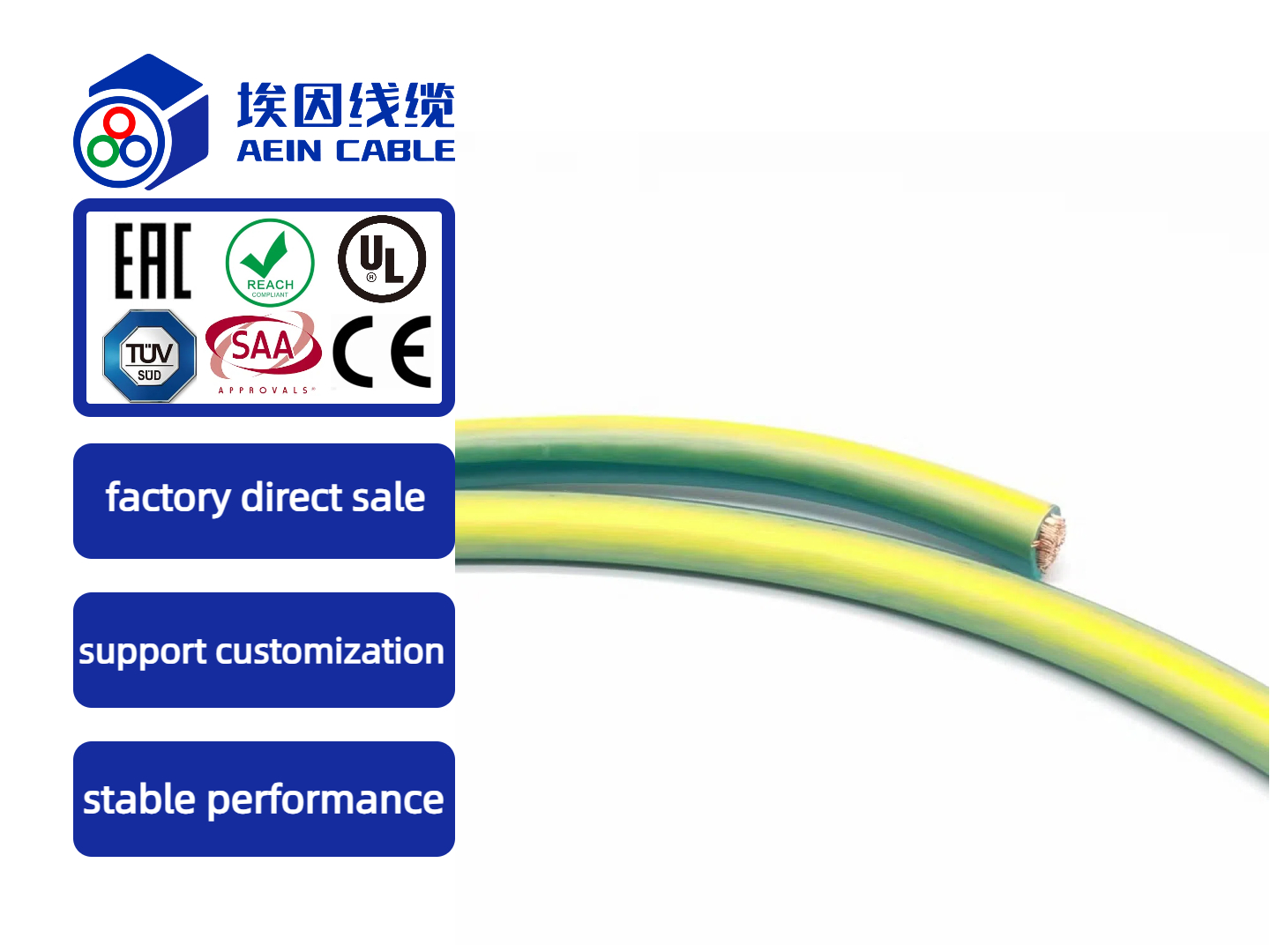

UL&CUL certified ETFE cable, used for processing equipment/machine tools, semiconductor equipment, and laboratory applications .Application of external cranes. This cable is oil resistant, environmentally friendly, high-strength, and has excellent
weather resistance.Suitable for high-frequency mobile applications
-
02 Product characteristics
Flame retardant
Resistant to water, oil, acids, solvents and fungus.
-
03 Technical certification
•C onform to 2014/35/EU-Guideline (''Low voltage Directive'') CE •We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor : Bare Copper(Tinned on request)
Conductor type : Compliant with UL758 standard and IEC 60228 Class 5
Core identification : different colors
Insulation: ETFE
Rated voltage: 600V
Test voltage: ≤ 2AWG 2000V; 1-4/0 2500V; 250kcmil-500kcmil 3000v; 501kcmil-1000kcmil 3500V
Conductor resistance: UL1581 ASTM Class C
Minimum bending radius fixed : 4 xd
Minimum bending radius moved : 15 xd
Temperature rating: UL10210: -60 ° C/+150 ° C; UL11628:-60°C/+200°C,
Bruning behavior : Self extinguishing and flame retardant properties comply with IEC 60332-1-2 FT1 UL-VW-1
Standard: UL758
Product identification: Product identification: Aein bei ke E503807 brother AWM Model number specification temperature voltage or cbrother AWM Ⅰ A specification temperature voltage FT1 SHANGHAI AEIN
