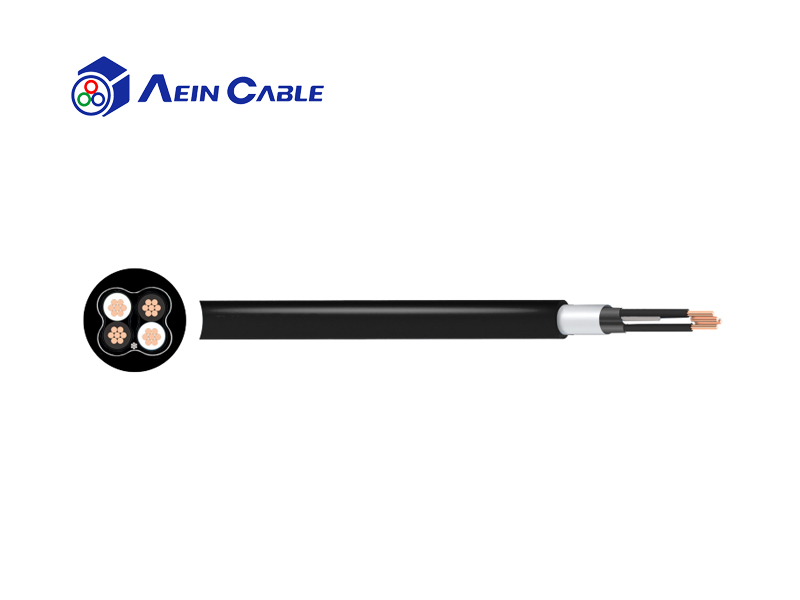

UL 1277 CAM TC-ER Rated 600V Cable

The 600V Instrumentation Cables are listed as Type TC per UL 1277. Suitable for installations as described in NEC ART 336.

Certification : American UL certification

Voltage : 600V

Low temperature :

High temperature : 90°C

Insulation material : PVC

Sheath material : PVC

Shielding : Shield

Installation way : Occasional flexing Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

The 600V Instrumentation Cables are listed as Type TC per UL 1277. Suitable for installations as described in NEC ART 336.
02 Product characteristics

Voltage Rating: 600V

Temperature Rating: Dry: 90°C

Minimum Bending Radius: 7.5 x overall diameter
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor: Plain annealed copper wires

Insulation: PVC/Nylon (Polyvinyl Chloride / Nylon)

Tape: Polyester tape

Drain Wire: Solid tinned copper wire

Shield: AL-PES foil, Aluminum contact with stranded tinned copper drain wire

Sheath: PVC (Polyvinyl Chloride)

Core Identification: Black White

Sheath Colour: Black

Keywords: American UL certification
