Product introduction
-
01 Product application
The 600V Instrumentation Cables are listed as Type TC per UL 1277. Suitable for installations as described in NEC ART 336.
-
02 Product characteristics
Voltage Rating: 600V
Temperature Rating: Dry: 90°C
Minimum Bending Radius: 7.5 x overall diameter
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

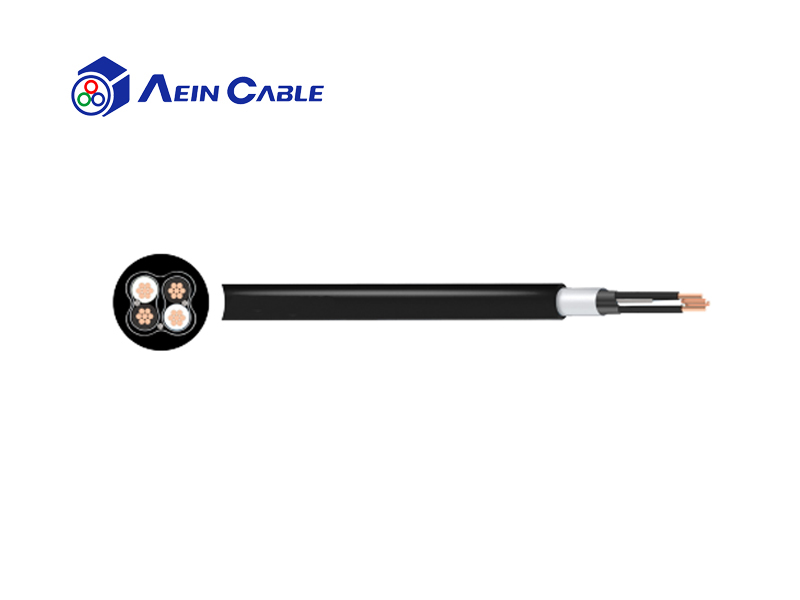

Product structure
Conductor: Plain annealed copper wires
Insulation: PVC /Nylon (Polyvinyl Chloride)
Individual Separator: Polyester tape
Individual Drain Wire: Solid tinned copper wire
Individual Shield: AL-PES foil, Aluminum contact with stranded tinned copper drain wire
General Separator: Polyester tape
General Drain Wire: Solid tinned copper wire
Sheath: PVC (Polyvinyl Chloride)
Core Identification: Black White
Sheath Colour: Black
