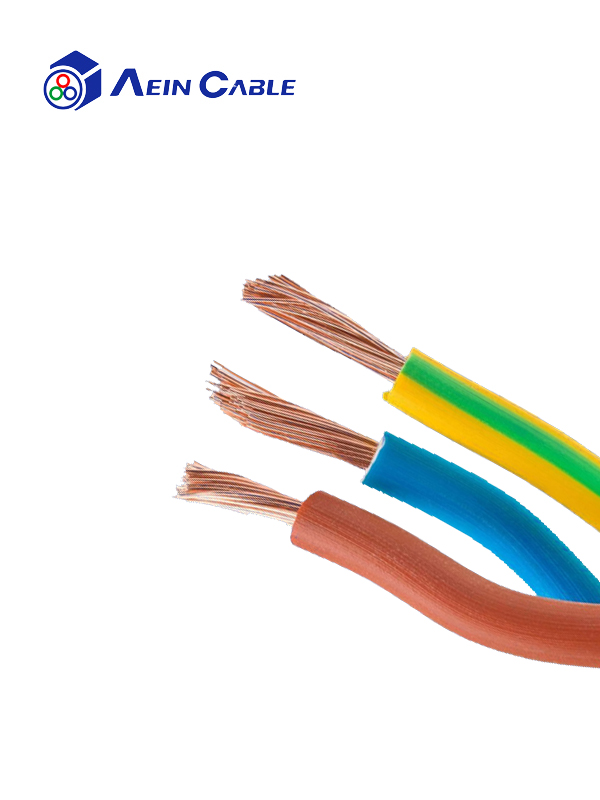

Product introduction
-
01 Product application UL&CUL&CE certified PVC Cable,PVC Wiring cables for internal wiring of control cabinets, medical technology equipment, electronic components and control devices, as well as protective hoses and pipes installed in mechanical engineering, and connections for transformers and motors.
-
02 Product characteristics • UL/CE dual certification control cable (UL&CUL) (UL&CE)
• Shall not be used for laying directly on platforms, walkways or bathtubs (except for equipotential connections)
• All common standard colors are available
-
03 Technical certification • Conform to RoHS standard• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE• Bare wire is also available upon request
Product structure
Conductor material: Copper stranded wire
Type of conductor: Conform to UL758 Standard, conform to IEC 60228 5 Class
Core insulation:PVC
Core identification: Different colors
Rated voltage:300V
Test voltage:2000V;
Conductor resistance:UL1581 ASTM C class
Min. bending radius fixed:4x d
Min. bending radius moved:15x d
Operat. temp. fixed min/max: -40°C/105°C
Burning behavior: Self-extinguishing and flame retardant IEC60332-1-2.UL - VW 1 and FT 1
Approvals: UL&CUL,CE
Product identification: E503807 ® AWM Model number specification temperature voltage VW-1 or ® AWM I A specification temperature voltage FT1
SHANGHAI AEIN Model number specification voltage CE
Product parameter
