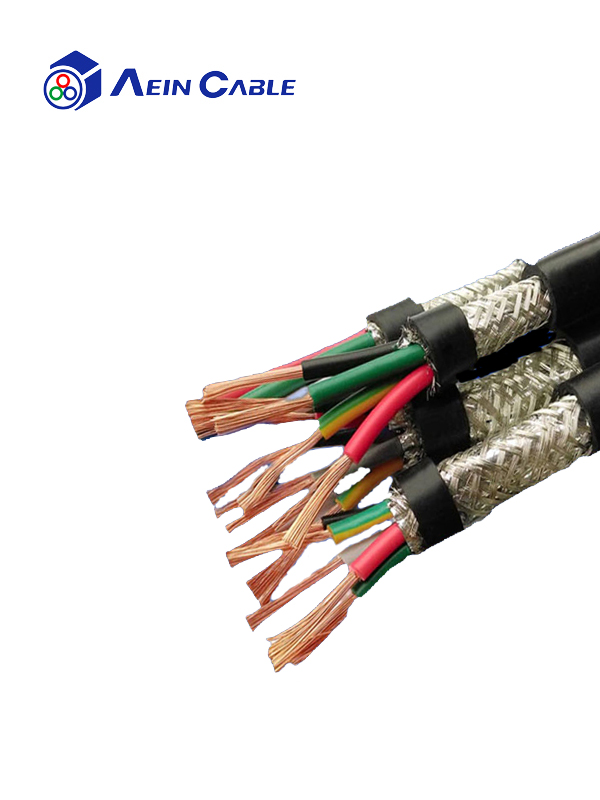

UL20937(P)/Li2YC11Y Certified Shielding Sheath Wire

UL20937(P)/Li2YC11Y Certified Shielding Sheath Wire

UL& CUL certified data transmission cable, control and connection cable, mainly used for connection cable between servo controller and encoder resolver. Suitable for high demand towing chain and mobile drive system. Internal wiring or external interconnection of electronic equipment, with oil resistance, wear resistance, acid and alkali resistance, waterproof, UV resistance.
inquiry
  • Product details
           Product introduction
  • 01 Product application The UL&CUL certified data transfer cables, control and connection cables, mainly for connection cables between servo controllers and encoder resolvers. Suitable for high demand towing chain and mobile drive system. Internal wiring or external interconnection of electronic equipment, with oil resistance, wear resistance, acid and alkali resistance, water resistance, UV resistance.
  • 02 Product characteristics •Conform to RoHS standrad
    •UV resistance
    •Flame retardant coincidence CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Recommend for EMC compatible application
    Resistant to hydrolisis, microbes, cooling fluids, grease and lubricants

  • 03 Technical certification •Conform to UL&CUL standard,UL758,CSA C22.2 No. 210
    •Conform to 2014/35/EU-Guideline(" Low voltage Directive ")CE
    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

Conductor material: Bare copper or tin plating

Conductor class: acc. to UL758 standard,ASTM B3 or ASTM B33 standard,DIN VDE 0295 Conductor 5 pt.4 or. IEC 60228 Conductor 5 pt.4

Core insulation:PVC,HDPE optional

Core identification:< 20AWG:5 cores and below are distinguished by color separation, acc. to Din 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥18AWG: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to Din 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements

Stranding: Laying in layers

Shield: Tinned copper wire braided or thinly wound shielding, shielding density>70%

Outer sheath: flame retardant TPU

Sheath color: GrayRAL7001, Black RAL9005, Green RAL6018

Rated voltage:30V

Test voltage:500V

Conductor resistance:UL1581 ASTM class C

Minimum bending radius fixed:4x d

Minimum bending radius flexible:7.5x d

Operat. temp. fixed min/max:-50 °C / +80 °C;PVC:-40 °C / +80 °C

Operat. temp. moved min/max: -40 °C / +80 °C;PVC:-30 °C / +80 °C

Burning behavor: Self - extinguishing and flame retardant;CSA C22.2 No.2556-15 FT2

Oil resistance: UL1581:IRM 902; Conform to DIN EN 60811-2-1

Approvals:UL&CUL:CE

Product identification :Aein bei ke    E503807  ®   AWM  Model number  specification temperature  voltage c®    AWM Ⅰ/Ⅱ A/B specification temperature  voltage  FT2  SHANGHAI AEIN  Model number  specification voltage CE
