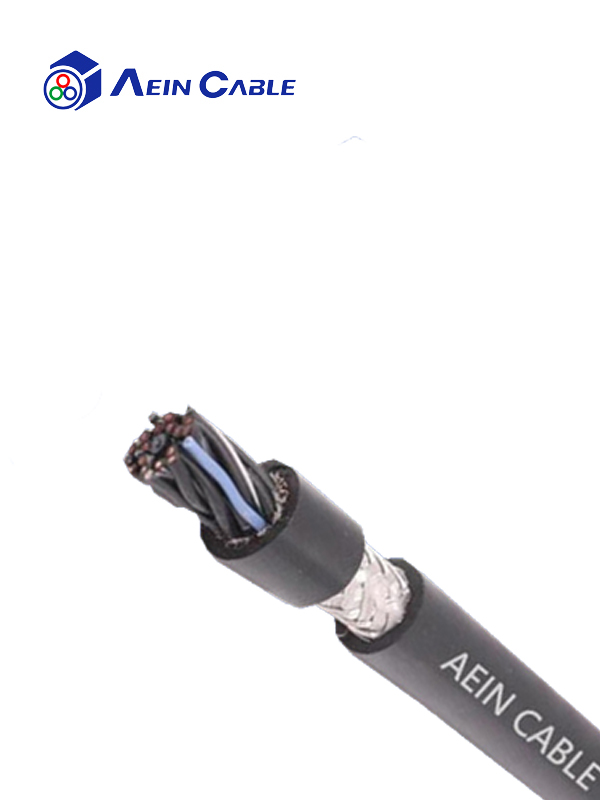

Conductor material: bare copper
Conductor class: acc. to UL758 standard,ASTM B3 or ASTM B33 standard.VDE 0295 Conductor 5 pt.4 or. IEC60228 Conductor 5 pt.4
Core insulation:PVC,XLPE,TPE optional
Current carrying capacity: acc. to DIN VDE 0293
Stranding:Layered or parallel structure of cores
Shielding: Tinned copper wire braid, shielding density＞70%
Outer sheath: Flame retardant PUR
Sheath color: Gray RAL7001 or Black RAL9005
Rated voltage:1000 V
Test voltage:3 kV
Conductor resistance:UL1581 ASTM Cclass
Insulation resistance PVC:+20 °C ≥ 20 MΩ x km;PVC:+20 °C ≥ 200 MΩ x km
Minimum bending radius fixed:4x d
Minimum bending radius flexible:7.5x d
Operat. temp. fixed min/max:-40 °C / +80 °C
Operat. temp. moved min/max:-30 °C / +80 °C
Burning behavor: Self-extinguishing and flame retardant meet FT2
Oil resistance:UL1581:IRM 902; acc. to DIN EN 60811-2-1
Approvals:UL&CUL&CE
Product identification: Aein bei ke E503807 ® AWM Model number specification temperature voltage c® AWM Ⅰ/Ⅱ A/B specification temperature voltage FT2 SHANGHAI AEIN Model
number specification voltage CE
