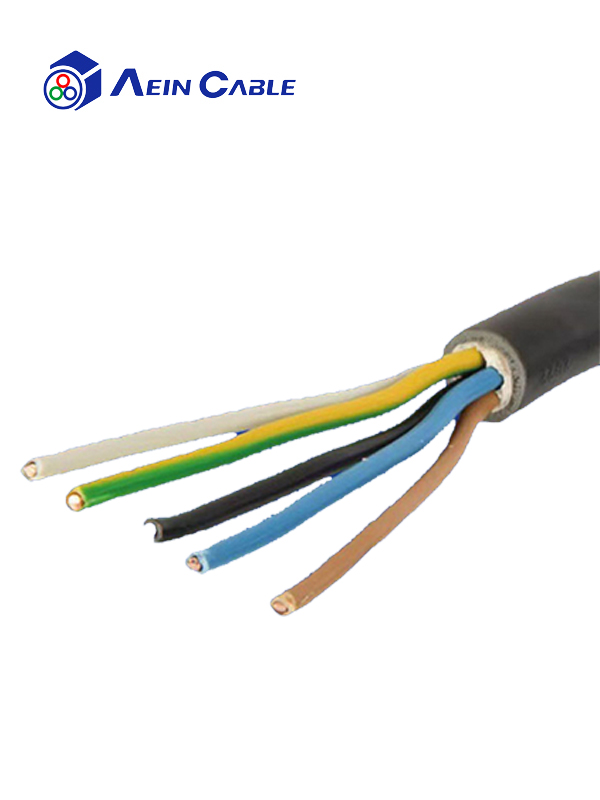

UL2464&LiYY UL Standard CE Standard Dual Certified Cable

UL2464&LiYY UL Standard CE Standard Dual Certified Cable

UL& CUL& CE certified data transmission cables, control and connection cables are mainly used to transmit analog and digital signals in the process control facilities of measurement and control technology to achieve lossless data and signal transmission. Suitable for fixed laying and suitable for low speed moving occasions, no clear cable path, no tensile stress. Suitable for dry and wet indoor use. The internal wiring or external interconnection of electronic devices.

Certification :   American UL certification     European CE certification

Voltage :   300V

High temperature :   80°C

Low temperature :   —40°C     —15°C

Insulation material :   PVC     Labeled

Sheath material :   PVC

Shielding :   Unshield

Installation way :   Fixed installation     Occasional flexing

Environment :   General indoor environment     General outdoor environment

inquiry
  • Product details
Product introduction
  • 01 Product application The UL&CUL&CE certified data transmission cables, control and connection cables are used primarily for the transmission of analog and digital signals in the process control facilities of measurement and control technology to achieve lossless data and signal transmission. Suitable for fixed laying and suitable for low speed moving occasions, no clear cable path, no tensile stress. Suitable for dry and wet indoor use. The internal wiring or external interconnection of electronic devices.
  • 02 Product characteristics • Conform to RoHS standard
  • 03 Technical certification • Conform to UL&CUL&CE Standard,UL758,CSA C22.2 No. 210
    Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
    We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

Conductor material: Bare copper or tinned copper

Conductor class: acc. to UL758 Standard,ASTM B3 or ASTM B33 standard,DIN VDE 0295 Conductor 5 pt.4 or. IEC 60228 Conductor 5 pt.4

Core insulation:PVC,HDPE

Core identification:< 20AWG:5 cores and below are distinguished by color separation, acc. to Din 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥18AWG: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to Din 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements

Stranding :Layered stranding,Parallel structure

Sheath:PVC

Sheath color: gray RAL7001 or black RAL9005

Rated voltage:300V

Test voltage:2.0 kV

Conductor resistance:UL1581 ASTM C class

Insulation resistance:PVC:+20 °C ≥ 20 MΩ x km;HDPE:+20 °C ≥ 200 MΩ x km

Minimum bending radius fixed:7.5x d

Minimum bending radius shift:15x d

Operat. temp. fixed min/max:-15 °C / +80°C

Operat. temp. fixed min/max:-5°C / +80°C

Burning behavor: Self - extinguishing and flame retardantUL1581VW-1;CSA C22.2 No.2556-15 FT1,FT2;IEC 60332-1-2standard

Approvals:UL&CUL:UL1007,UL1569,UL10450,UL2464
                CE:LiYY,Li2YY If neededCECertification requirements should be specified separately

Product identification:Aein bei ke E503807  ®   AWM  Model number  specification temperature  voltage c®    AWM Ⅰ/Ⅱ A/B specification temperature  voltage  FT2  SHANGHAI  AEIN   Meter scale  SHANGHAI AEIN  Model number  specification voltage CE
