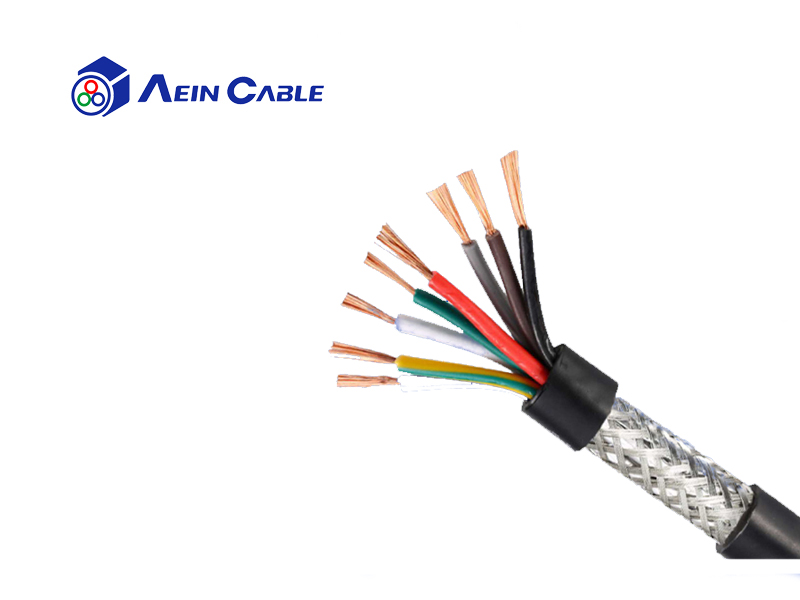

Conductor material: Bare copper or tinned copper

Conductor type: In accordance with UL 758 Standard, ASTM B3 or ASTM B33 Standard, DIN VDE 0295 5 Conductor or. IEC 60228 5 Conductor

Core insulation:PVC(automobile materials)

Core identification:<20AWG: 5 cores and below are distinguished by color separation, acc. to Din 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥20AWG: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to Din 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements)

Stranding:Layered stranding,Parallel structure

Shielding layer :Tinned copper braid; Coverage is about 70%.

Sheath:PVC(-40 Sheath)

Jacket color: Gray RAL7001 Or black RAL9005

Rated voltage:300V

Test voltage: Core/Core:2.0 kV

Conductor resistance:UL1581 ASTM C class

Insulation resistance:+20 °C ≥ 20 MΩ x km

Min. bending radius fixed:7.5x d

Min. bending radius moved:15x d

Operat. temp. fixed min/max:-40 °C / +105 °C

Operat. temp. moved min/max:-30 °C / +105 °C

Burning behavior: Self-extinguishing and flame retardant UL1581 VW-1;CSA C22.2 No.2556-15 FT1,FT2;IEC 60332-1-2 standard

Approvals: UL&CUL:UL1569,UL2517
           CE:FLRYY  If needed CE Certification requirements should be specified separately

Product identification:Aein bei ke E503807  ®   AWM  Model number  specification temperature  voltage ®    AWM Ⅰ/Ⅱ A/B specification temperature  voltage  FT2  SHANGHAI  AEIN   Meter scale
