Product introduction
-
01 Product application •As flexible power and control cables, external interconnect or internal wiring, used for high electrical and light to moderate mechanical requirements in towing chains and motion drive systems in mechanical and equipment engineering.
-
02 Product characteristics •Conform to RoHS standard
-
03 Technical certification • Conform to UL&CULStandard,UL758,CSA C22.2 No. 210•
Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

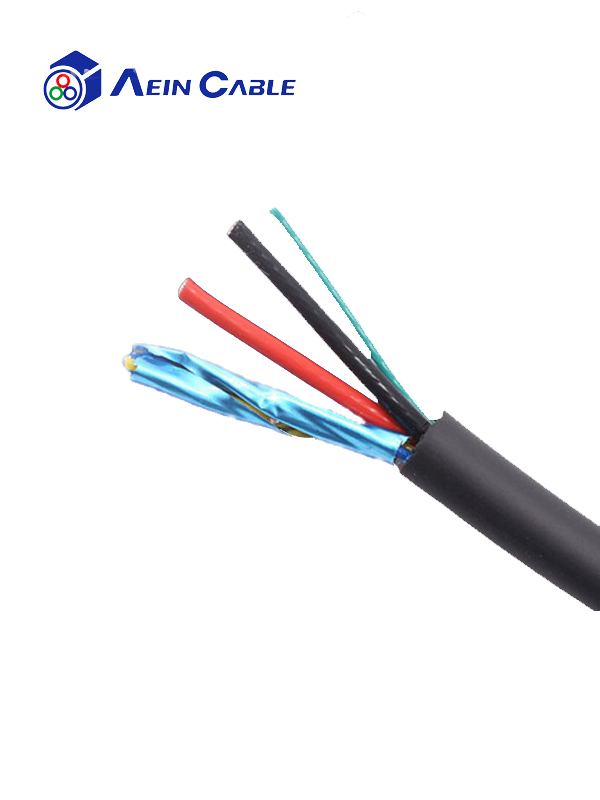

Product structure
Conductor material: Bare copper or tinned copper
Conductor grade: Conform to UL758 standard,ASTM B3 or ASTM B33 Standard,DIN VDE 0295 5 Conductor or. IEC 60228 5 Conductor
Core insulation:PVC,XLPE optional
Core identification: In accordance to DIN VDE 0293 Black with white numbering, 1 x GNYE
Rated voltage:600V,1000V
cabling:Layered or parallel structure of cores
Outer sheath:PVC
Jacket color:grey RAL7001 or black RAL9005
Test voltage:600V:≤2AWG 2000V; 1-4/0 2500V; 250kcmil-500kcmil 3000V ; 501kcmil-1000kcmil 3500V 1000V:3000V
Conductor resistance:UL1581 ASTM class C
Insulation resistance:PVC:+20 °C ≥ 20 MΩ x km;XLPE:+20 °C ≥ 200 MΩ x km
Minimum bending radius fixed:4x d
Minimum bending radius flexible:10x d
Operat. temp. fixed min/max: -15 °C / +105 °C
Operat. temp. fixed min/max: -5 °C / +105 °C
Burning behavor: Self - extinguishing and flame retardant UL1581VW-1;CSA C22.2 No.2556-15 FT1,FT2;IEC 60332-1-2 standard
Approvals:UL&CUL&CE
Product identification: Aein bei ke E503807 ® AWM Model number specification temperature voltage c® AWM Ⅰ/Ⅱ A/B specification temperature voltage FT2 SHANGHAI AEIN Model
number specification voltage CE
Product parameter
