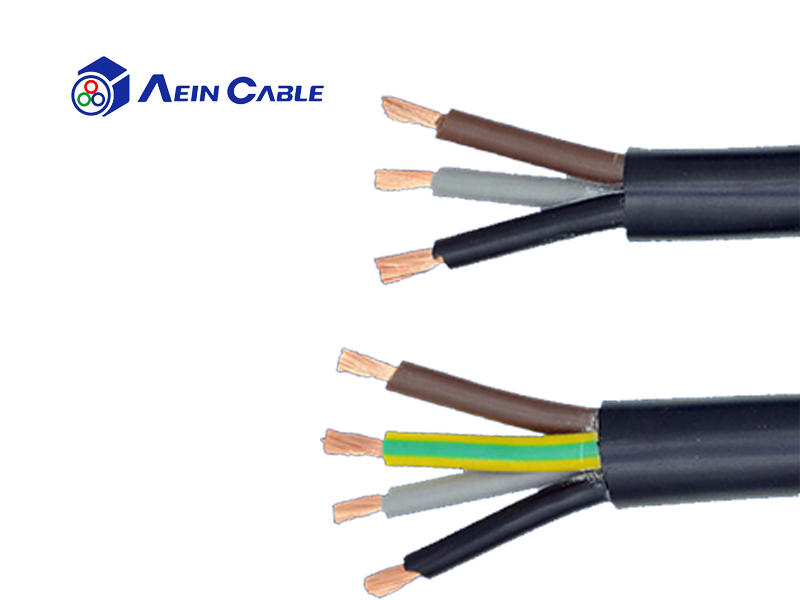

Conductor material: bare copper or tinned copper
Conductor class: Conform to UL758 Standard, ASTM B3 or ASTM B33 Standard,DIN VDE 0295 5Conductor like or. IEC 60228 5 Conductor
Core insulation:PVC,XLPEoptional
Core identification: acc. to DIN VDE 0293 Black with white numbering, 1 x GNYE
Rated voltage:600V
Cabling:Layered or parallel structure of cores
Outer sheath:PVC
Jacket color:grey RAL 7001Or blackRAL9005
Test voltage:600V:≤2AWG 2000V; 1-4/0 2500V; 250kcmil-500kcmil 3000V ; 501kcmil-1000kcmil 3500V
Conductor resistance:UL1581 ASTM Cclass
Insulation resistance:PVC:+20 °C ≥ 20 MΩ x km;XLPE:+20 °C ≥ 200 MΩ x km
Minimum bending radius fixed:4x d
Minimum bending radius moved:10x d
Operating temperature: fixed minimum/Maximum -15 °C / +90 °C
Operating temperature: Moving minimum/Maximum -5 °C / +90 °C
Burning behavior: self - extinguishing and flame retardantUL1581VW-1;CSA C22.2 No.2556-15 FT1,FT2;IEC 60332-1-2 standard
Certification:UL&CUL:UL1015,UL10914,UL11122,UL3271,UL3321,UL3386,UL3196,UL3289,UL3237,UL3820,UL2586
CE:YSLCY,2XSLCY If neededCECertification requirements should be specified separately
Product identification: Aein bei ke E503807 brother AWM Model number specification temperature voltage cbrother AWM Ⅰ/Ⅱ A/B specification temperature voltage FT2 SHANGHAI
