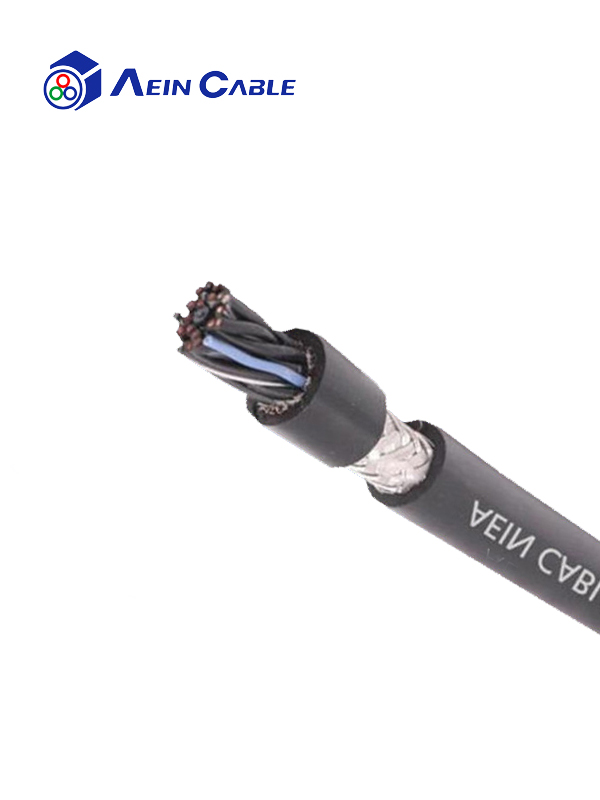

Conductor material: Bare copper or tinned copper

Conductor class: acc. to UL758 standard,ASTM B3 or ASTM B33 Standard,DIN VDE 0295 Conductor 5 pt. 4 or. IEC 60228 Conductor 5 pt. 4

Core insulation:PVC,XLPE optional

Core identification: acc. to DIN VDE 0293 Black with white numbering, 1 x GNYE

Rated voltage:600V

Stranding:Layered or parallel structure of cores

Shield:Tinned copper wire braided shielding, shielding density＞70%

Outer sheath:PVC

Sheath color:Grey RAL7001 or Black RAL9005

Test voltage:600V:≤2AWG 2000V; 1-4/0 2500V; 250kcmil-500kcmil 3000V ; 501kcmil-1000kcmil  3500V

Conductor resistance:UL1581 ASTM class C

Insulation resistance:PVC:+20 °C ≥ 20 MΩ x km;XLPE:+20 °C ≥ 200 MΩ x km

Minimum bending radius fixed:4x d

Minimum bending radius flexible:10x d

Operat. temp. fixed min/max: -15 °C / +90 °C

Operat. temp. moved min/max: -5 °C / +90 °C

Burning behavor: Self - extinguishing and flame retardant UL1581VW-1;CSA C22.2 No.2556-15 FT1,FT2;IEC 60332-1-2 standard

Approvals:UL&CUL&CE

Product identification: Aein bei ke    E503807  ®   AWM  Model number  specification temperature  voltage c®   AWM Ⅰ/Ⅱ A/B specification temperature  voltage  FT2  SHANGHAI AEIN  Model number  specification voltage CE
