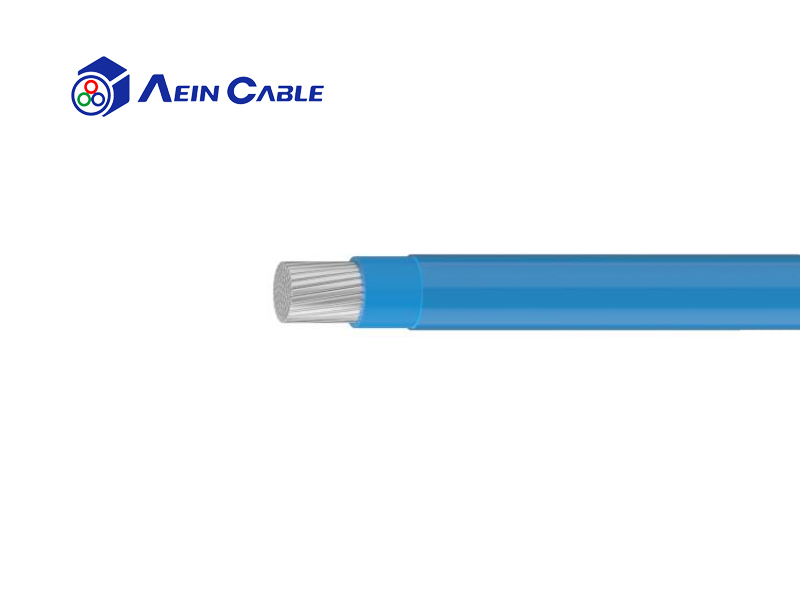

THHN/THWN-2 Thermoplastic Insulated Wires with NEC

THHN/THWN-2 Thermoplastic Insulated Wires with NEC

Intended for use in conduit and cable trays for services, feeders and branch circuits for use in residential, commercial and industrial applications in accordance with the National Electrical Code (NEC). Type THHN/THWN-2 conductors are approved for use at a maximum voltage of 600 volts and a maximum conductor temperature of 90 °C in wet or dry locations and 60 °C when exposed to gasoline and oil. Use of lubrication for installations in raceways is not mandatory

Certification :   American UL certification

Voltage :   600V

Low temperature :   —5°C     —15°C     —40°C

High temperature :   80°C     70°C     90°C

Insulation material :   PVC     Labeled

Sheath material :

Shielding :   Unshield

Installation way :   Fixed installation     Occasional flexing

Environment :   General indoor environment     General outdoor environment     Corrosive environment

inquiry
  • Product details
Product introduction
  • 01 Product application


    Intended for use in conduit and cable trays for services, feeders and branch circuits for use in residential, commercial and industrial applications in accordance with the National Electrical Code (NEC). Type THHN/THWN-2 conductors are approved for use at a maximum voltage of 600 volts and a maximum conductor temperature of 90 °C in wet or dry locations and 60 °C when exposed to gasoline and oil. Use of lubrication for installations in raceways is not mandatory

  • 02 Product characteristics

    – 600 V THERMOPLASTIC INSULATED ALUMINUM THHN/THWN-2

    – Voltage Range : 600 V

    – Temperature Range : -40°C to 90°C

    – 8 AWG to 1000 MCM

  • 03 Technical certification UL 83 - ASTM B3
    Conform to RoHS     • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

Construction/Material

– Conductor : Annealed Bare Copper & Aluminium Alloy 8000 Series

– Insulation : PVC 90degC

– Jacket : Nylon-6


Keywords: American UL certification
