Product introduction
-
01 Product application
UL& CUL certified, designed for industrial equipment, heavy tools, electrical and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine terminal power supply and mining applications. Suitable for indoor/outdoor.
-
02 Product characteristics Excellent resistance to oils, acids, chemicals, water, ozone, extreme temperatures, cuting, tearing and abrasion.
S = Service cable (600v)S = Extra hard service (rated for 600V)
J = Junior (hard) service (rated for 300V)
O = Oil resistant outer jacket
-
03 Technical certification •Acc. to UL62
•Acc. to CSA C22.2-49
•Acc. to RoHS
•UL/CSA certified
•We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.

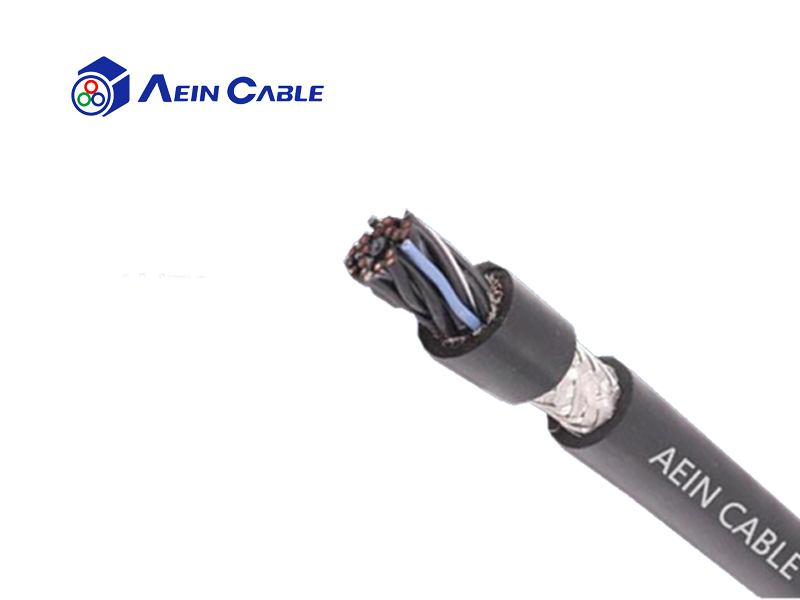

Product structure
Conductor material: copper stranded wire
Conductor grade: Class 5 Acc. to DIN VDE 0295, class 5 acc. to IEC 60228
Core insulation: EPR
Core identification: Color distinction (optional)/black core wire and white digital code
Stranding: Core stranded, filler
Shielding: tinned copper wire braided
Shielding density: ≥85%
Outer sheath: CPE
Jacket color: black RAL9005 (optional)
Rated voltage: 300V
Testing voltage:18AWG-11AWG 2000V, 10AWG 3000V
Minimum bending radius fixed: 7.5 x d
Minimum bending radius moved: 10 x d
Operat. temp. fixed min/max: -40 °C / +105 °C -40 °C / +90 °C
Operat. temp. moved min/max: -40 °C / +105 °C -40 °C / +90 °C
Burning behavior: flame-retardant conform to IEC60332-1-2 FT1 VW-1
Oil resistance: acc. to EN 60811-2-1
Certification: CE: H07RN-F,H07BN4-F,H07RN8-FIf If you need CE certification, please indicate separately.
Product identification: Aein bei ke E503806 (UL) Specification *×**AWG(**mm²) Temperature Voltage c (UL) Model *×**mm²(**AWG) Temperature Voltage FT2
Product parameter
