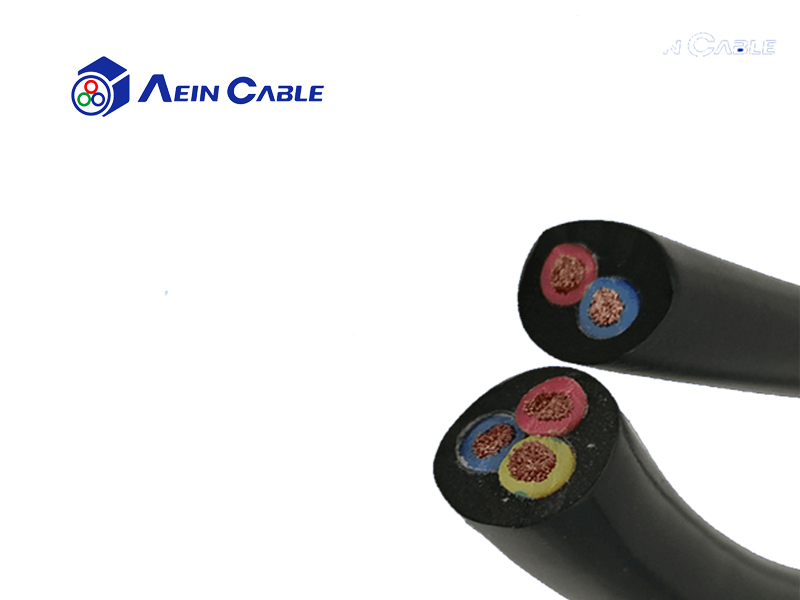

Conductor material: Copper stranded
Conductor class: acc. to DIN VDE 0295 Class 5, acc. to IEC 60228 class 5
Core insulation: EP
Core identification: Preferred color: black, white, red, yellow green (green), orange, from 6 Root black RAL9005Line, with white numbers, with or without yellow/green
Stranding: Core stranding and filling
Outer sheath:CPE
Jacket color: Black RAL9005(Optional)
Rated voltage:300V
Test voltage:18AWG-11AWG 2000V; 10AWG 3000V
Minimum bending radius fixed:7.5x d
Minimum bending radius moved:10x d
Operat. temp. fixed min/max: --40 °C / +105 °C -40 °C / +90 °C -40 °C / +75 °C -40 °C / +60 °C
Operat. temp. moved min/max： --40 °C / +105 °C -40 °C / +90 °C -40 °C / +75 °C -40 °C / +60 °C
Burning behavior: Self-extinguishing and flame retardant Conform
to IEC60332-1-2 FT1 VW-1
Oil resistance: acc. to EN 60811-2-1
Approvals: CE:H07RN-F,H07BN4-F,H07RN8-F If needed CE Certification should be noted separately.
Product identification: E503807 ® AWM Model number specification temperature voltage VW-1 or ® AWM I A specification temperature voltage FT2
