Product introduction
-

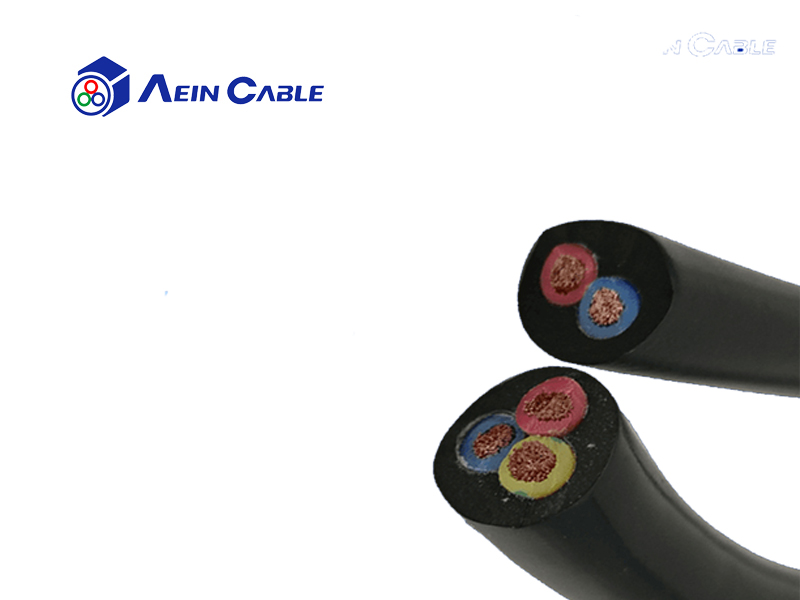

01 Product application SJOOW rubber cable is designed for industrial equipment, heavy tools, electrical and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, Marine terminal power supply and mining applications. Suitable for indoor/outdoor use.
-
02 Product characteristics• Excellent wear resistance to oil, acids, chemicals, water, ozone, extreme temperatures, cutting, and tearing.
S = Extra hard service (rated for 600V)
J = Junior (hard) service (rated for 300V)
O = Oil resistant outer jacket
OO = Oil-resistant outer jacket and inner insulation
W = Weather and water-resistant - outdoor rated (note: this is NOT the same as Type W, another kind of portable cord)
-
03 Technical certification • Conform to UL62
• Conform to CSA C22.2-49
• Conform to RoHS
• UL/CSA certification
• Customization is acceptable for products of special construction, other sizes, cores and colors of sheathing
Product structure
Conductor material: Copper stranded
Conductor class: acc. to DIN VDE 0295 Class 5, acc. to IEC 60228 Class 5
Core insulation:EPR
Core identification: Color distinction (optional)/black core wire self-color digital coding
Stranding: Core stranding and filling
Outer sheath:CPE
Jacket color: Black RAL9005(Optional)
Rated voltage:300V
Test voltage:18AWG-11AWG 2000V; 10AWG 3000V
Minimum bending radius fixed: 7.5x d
Minimum bending radius moved:10x d
Operat. temp. fixed min/max: --40 °C / +105 °C -40 °C / +90 °C
Operat. temp. moved min/max: --40 °C / +105 °C -40 °C / +90 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC60332-1-2
FT1 VW-1
Oil resistance: acc. to EN 60811-2-1
Approvals: CE:H07RN-F,H07BN4-F,H07RN8-F If needed CE Certification should be noted separately.
Product identification: Aein beike E503806(UL) Model number *x**AWG(**mm2) temperature voltage c(UL) Model number *x**mm2 (**AWG) temperature voltage FT2
Product parameter
