Product introduction
-
01 Product applicationSO Designed for industrial equipment, heavy tools, electrical and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, ship dock power supply and mining applications. Suitable for indoor/outdoor use . Portable tools, equipment, small motors and related machinery, appliances and equipment that are exposed to oil, solvents, flame, moisture and other electrical equipment requiring flexibility and durability. Suitable for applications up to 600 V and temperatures from -40°C to +105°C.
-
02 Product characteristics • On oils, acids, chemicals Product, water, ozone, extreme Temperature, cutting, tear And has excellent resistance to wear.
S = Service line (600v)
O = Oil resistant outer sheath
-
03 Technical certification • Conform to UL62
• Conform to CSA C22.2-49
• Conform to RoHS
• UL/CSA certification
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

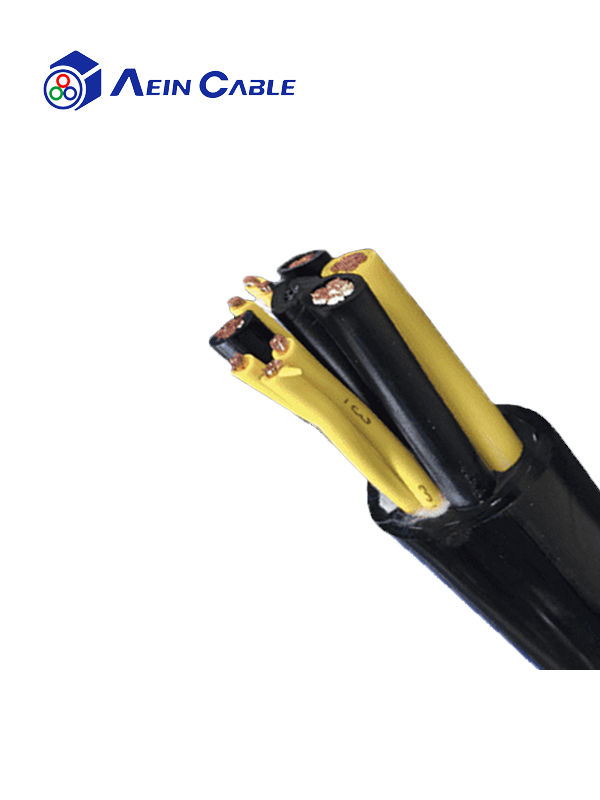

Product structure
Conductor material: Copper stranded wire
Conductor Class: In accordance with DIN VDE 0295 5 Class, refer to IEC 60228 5 class
Core insulation:EP
Core identification: Preferred color: black, white, red, yellow green (green), orange, from 6 Root black RAL9005 Line, with white numbers, with or without yellow/green
Stranding: Core stranding and filling
Outer sheath:CPE
Jacket color: Black RAL9005(Optional)
Rated voltage:600V
Test voltage: ≤13AWG 2000V; 12AWG-9AWG 3000V; 8AWG-2AWG 4000V
Min. bending radius fixed:7.5x d
Min. bending radius moved:10x d
Operat. temp. fixed min/max: --40 °C / +105 °C -40 °C / +90 °C -40 °C / +75 °C -40 °C / +60 °C
Operat. temp. moved min/max: --40 °C / +105 °C -40 °C / +90 °C -40 °C / +75 °C -40 °C / +60 °C
Burning behavior: Self-extinguishing and flame retardant Conform to IEC60332-1-2 FT1 VW-1
Oil resistance: Meet EN 60811-2-1
Approvals: UL/CE
Product identification: Aein bei ke E503806 (UL) Model number *×**AWG(**mm²) temperature voltage c(UL) Model number *×**mm²(**AWG) temperature voltage FT2 SHANGHAI AEIN Model number specification voltage
CE
