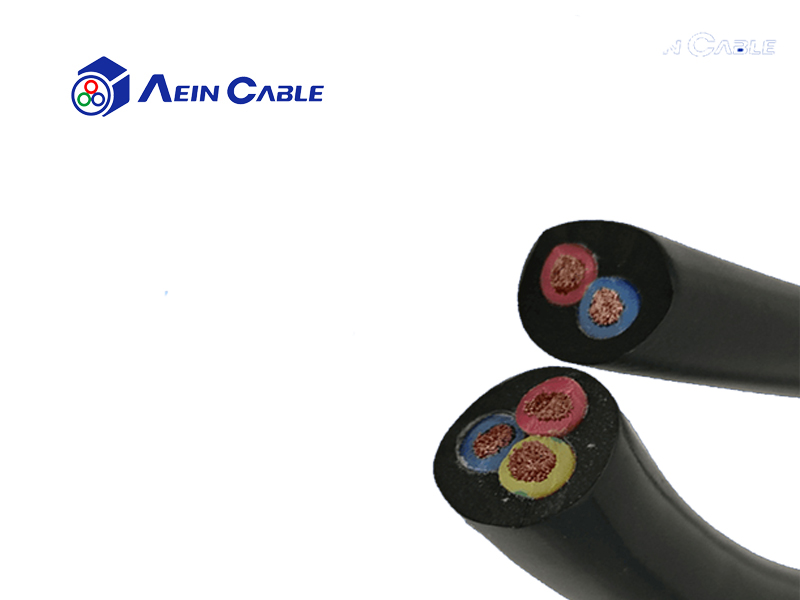

Conductor material: copper stranded wire
Conductor class: class 5 acc. to DIN VDE 0295, class 5 acc. to IEC 60228
Core insulation: EP
Core identification: ≤5 cores: black, white, red, yellow green (green), orange above 5 cores: black RAL9005 cable, with white numbers, yellow or green cables can be choose
Stranding: stranded in layers and fillers
Outer sheath: CPE
Jacket color: black RAL9005 (optional)
Rated voltage: 600V
Testing voltage: ≤13AWG 2000V, 12AWG-9AWG 3000V, 8AWG-2AWG 4000V
Minimum bending radius fixed: 7.5 x d
Minimum bending radius moved: 10 x d
Operat. temp. fixed min/max: -40 °C / +105 °C -40 °C / +90 °C -40 °C / +75 °C -40 °C / +60 °C
Operat. temp. moved min/max: -40 °C / +105 °C -40 °C / +90 °C -40 °C / +75 °C -40 °C / +60 °C
Burning behavior: flame-retardant conform to IEC60332-1-2 FT1 VW-1
Oil resistance: acc. EN 60811-2-1
Certification: CE: H07RN-F,H07BN4-F,H07RN8-F If you need CE certification, please indicate separately.
Product identification: Aein bei ke E503806 (UL) Model number *×**AWG(**mm²) temperature voltage c(UL) Model number *×**mm²(**AWG) temperature voltage FT2
