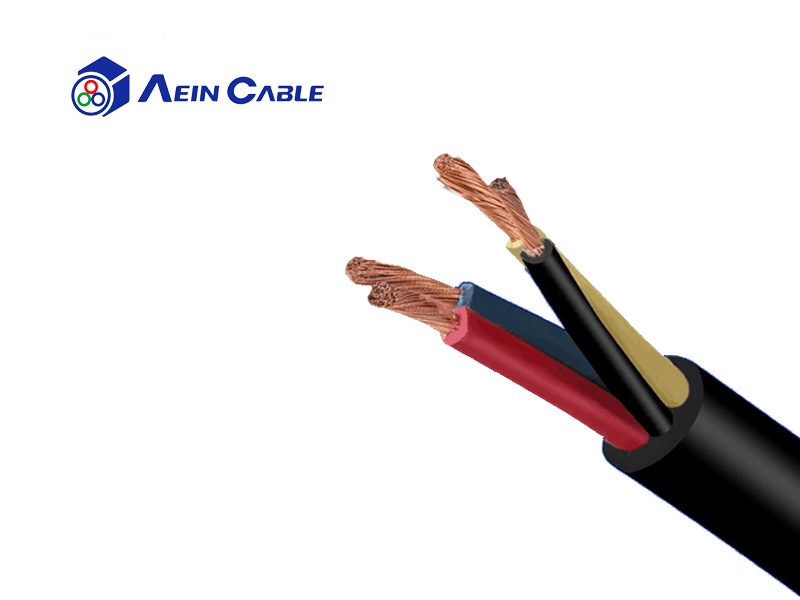

VCTF Japanese Standard 300V Control Cable

VCTF Japanese standard 300V control cable JIS standard industrial cable is mainly used for monitoring electrical equipment and power station control circuits. It can be installed outdoors or in dry or wet cable trenches.

inquiry

Product details

Product introduction

01 Product application
VCTF Japanese standard 300V control cable JIS standard industrial cable is mainly used for monitoring electrical equipment and power station control circuits. It can be installed outdoors or in dry or wet cable trenches.
02 Product characteristics
• Flame resistance
03 Technical certification •conform to RoHS,

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material: bare copper strand

Core insulation: PVC

Color: 2-4 cores - black, white, red, green

More than 4 cores: black core with digital marking

Filling: non-hygroscopic material (optional)

Inner sheath: polyvinyl chloride (PVC)

Outer sheath: PVC

Outer sheath color: black RAL9005: gray RAL7001 (optional)

Rated voltage: 300V

Test voltage: 2kV

Maximum conductor temperature: 90℃

Product identification: Aein bei ke® SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter mark

Product parameter

Click to download the product documentation
