Product introduction
-
01 Product application
Used as fixed installation cable in power, control and lighting electrical systems in most areas, below and above deck on Navy vessels.
-
02 Product characteristics
Flexible
Halogen free
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

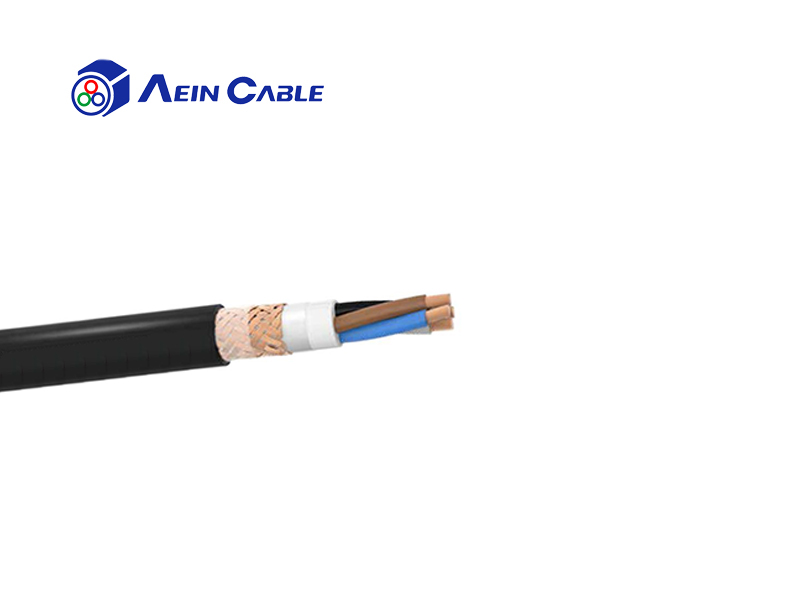

Product structure
CONDUCTOR : Electrolytic, stranded, copper wire to DIN EN 60228
Class 2 or Class 5
INSULATION : Halogen free cross linked EPR compound
CORE IDENTIFICATION : According to VG 95218 part 60
COMMON COVERING : Halogen free compound. (for MGSGO types B and D)
SEPARATOR : Polyester foil over the single core or over common covering over laid-up cores
SCREEN : Copper wire braiding screen with separating foil over braid (for MGSGO types A, B and D)
OUTER SHEATH : Halogen free, cross-linked elastomeric compound.
CONSTRUCTION : VG 95218 Part 60
MAX. PERMISSIBLE OPERATING VOLTAGE :AC 1200V / DC 1800V for type A, B, C AC 660V / DC 1000V for the type D
AC TEST VOLTAGE : 3,5 kV for type A, B, C 3 kV for type D
WORKING TEMPERATURE :-30°C / + 90°C
MIN. BENDING RADIUS (FIXED) :4xD for types with flexible conductor 5xD for all other types
