XHHW-2, UL Type SIS1/XHHW-2, VW-1 Rated

Type SIS1/XHHW-2, VW-1 is for use as general purpose wiring in residential, commercial, institutional and industrial construction at a maximum conductor temperature of 90°C in dry and wet locations; for installation in air, conduit or other raceways, in circuits not exceeding 600 volts. All sizes pass the vertical flame test (VW-1). Colors available. Sizes 1/0AWG and larger are for cable tray use and sunlight resistant. Sizes 2AWG and larger are listed and marked sunlight resistant in black only.

Certification : American UL certification

Voltage : 600V

Low temperature :

High temperature : 90°C

Insulation material : Labeled XLPE

Sheath material :

Shielding : Unshield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

Type SIS1/XHHW-2, VW-1 is for use as general purpose wiring in residential, commercial, institutional and industrial construction at a maximum conductor temperature of 90°C in dry and wet locations; for installation in air, conduit or other raceways, in circuits not exceeding 600 volts. All sizes pass the vertical flame test (VW-1). Colors available. Sizes 1/0AWG and larger are for cable tray use and sunlight resistant. Sizes 2AWG and larger are listed and marked sunlight resistant in black only.
02 Product characteristics

Flame-retardant and moisture resistant

03
Technical certification Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

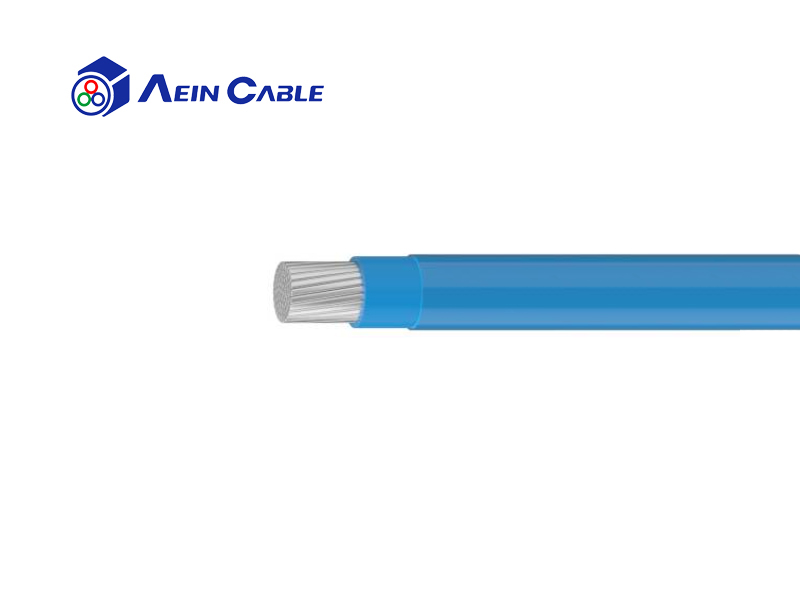

Conductor: Single copper conductor, stranded tinned annealed copper

Insulation: Flame-retardant and moisture resistant Cross-Linked Polyethylene (FRXLPE)

Color: upon request

Keywords: American UL certification
