YY Flexible PVC Indoor Control Cable

Flexible YY control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.

Certification : European CE certification

Voltage : 0.6/1KV

Low temperature : —5°C —15°C

High temperature : 70°C 90°C 80°C

Insulation material : Labeled XLPE

Sheath material :

Shielding : Shield

Installation way : Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

Flexible YY control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.
02 Product characteristics

Flame Retardant

Flexible
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

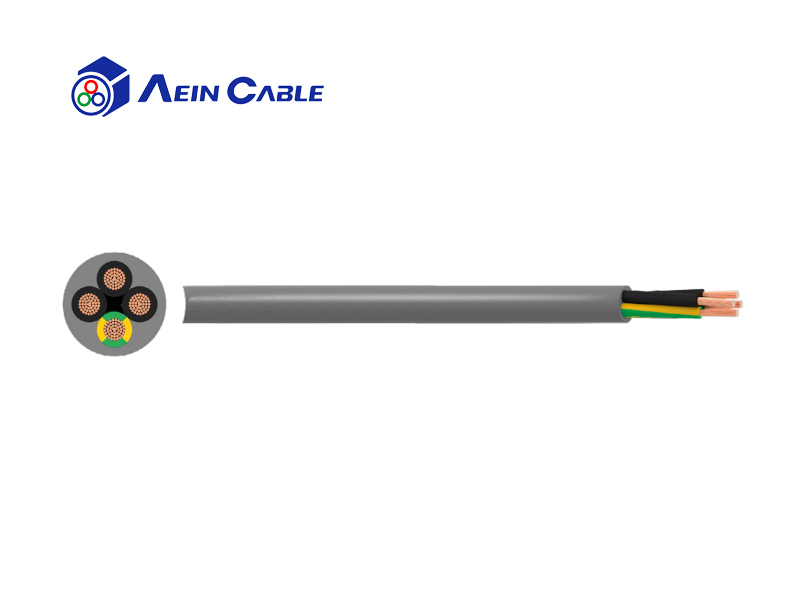

Product structure

Conductor: flexible plain copper

Insulation: PVC (Polyvinyl Chloride)

Sheath: PVC (Polyvinyl Chloride)

Core Identification

Black with White number:

From 3 cores: Black with white number + Green/Yellow

Colour-coded cores available upon request

Sheath Colour: Grey

Voltage Rating Uo/U: 300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter
