Product introduction
-
01 Product application
The servo controller is connected with the motor cable
Suitable for static and occasional flexible use
Plant engineering
Industrial machinery and machine tools
Printing press
-
02 Product characteristics
Low capacitance
Flammability:
UL/CSA: VW-1, FT1
IEC/EN:60332-1-2
-
03 Technical certification
· Comply with RoHS standards· For special structures, other sizes,
· Core and jacket color products can be customized.
Product structure
Conductor material: fine wire, bare copper conductor
Conductor grade: conforms to UL758 standard
Core insulation: halogen-free polyolefin
Core wire identification :<20AWG:5 core and below using color separation, in line with n. DIN 47100, more than 5 core multi-core cable using core wire color separation, white ink dot distinction; 220AWG:5 cores and the following uses color separation,
including yellow/green line, in line with n.DIN 47100, more than 5 core multi-core cables use black core wire, white ink numbered distinction (if there are special requirements on demand)
Stranding: two cores twisted into a pair; Layering of pairs
Shielding: tinned copper braid
Outer sheath: polyurethane

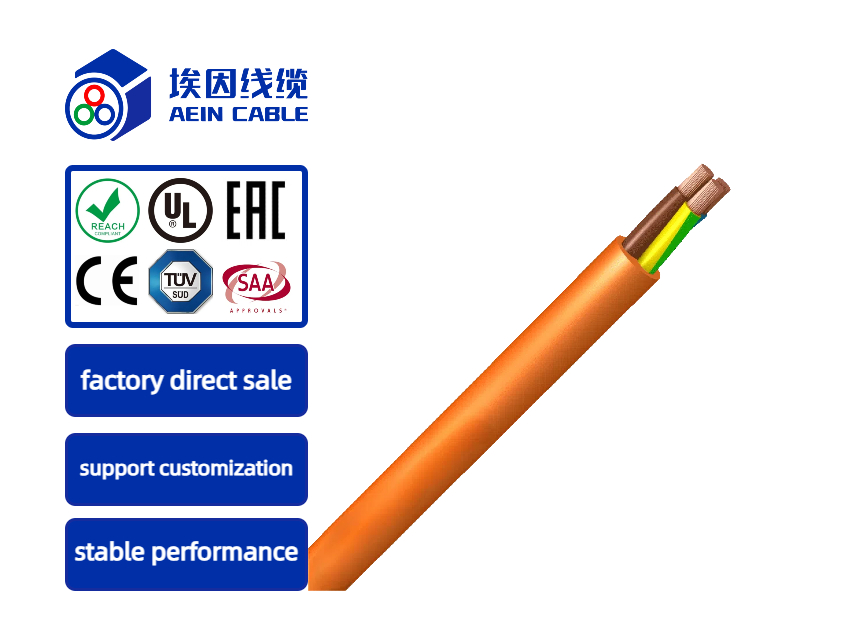

Jacket color: Orange (RAL2003)
Rated voltage :600/1000V
Test voltage :4000V
Conductor resistance :UL1581 ASTM Class C
Small bending radius fixed :6 x d
Small bending radius movement :15 x d
Operating temperature fixed minimum/maximum value :-40°C/+90°C
Temperature class shift small/large value :-5°C/+70°C;
