Product introduction
-
01 Product application
The servo controller is connected with the motor cable
Suitable for static and occasional flexible use
Plant engineering
Industrial machinery and machine tools
Printing press
-
02 Product characteristics
Low capacitance
Flammability:
UL/CSA: VW-1, FT1
IEC/EN:60332-1-2
-
Technical certification03
· Comply with RoHS
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing

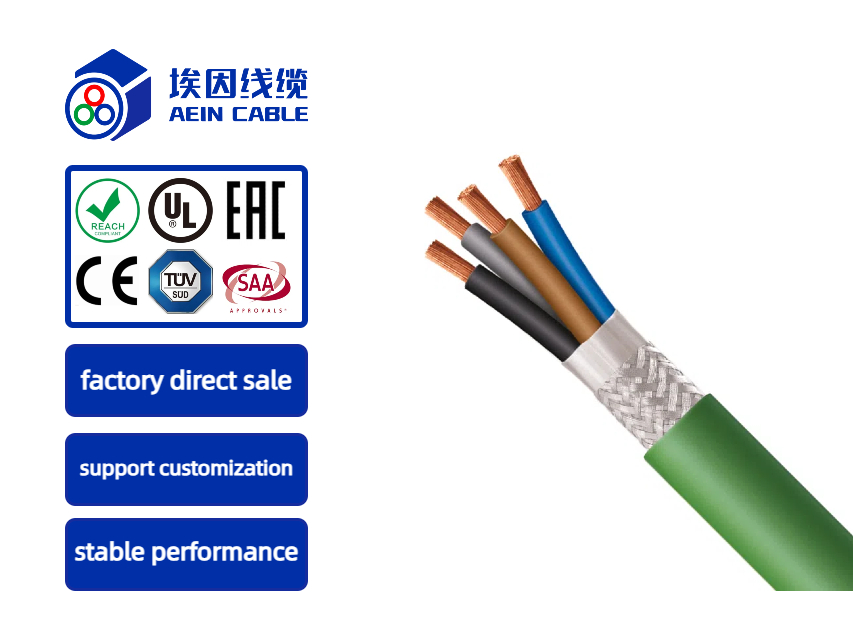

Product structure
Conductor material: fine wire, bare copper conductor
Conductor grade: conforms to UL758 standard
Core insulation: halogen-free polyolefin
Core wire identification :<20AWG:5 core and below using color separation, IN line with n.DIN 47100, more than 5 core multi-core cables using core wire color separation, white ink dot distinction; ≥ 20AWG:5 core and below using color separation, including
yellow/green line, in line with n. DIN 47100, more than 5 core multi-core cable using black core wire, white ink numbered distinction (if there are special requirements on demand)
Stranding: two cores twisted into a pair; Layering of pairs
Shielding: tinned copper braid
Outer sheath: polyurethane
Jacket color: Orange (RAL2003)
Frontal voltage :600/1000V
Test voltage :4000V
Conductor resistance :UL1581 ASTM Class C
Small bending radius fixed :6x d
Small bending radius movement :15x d
Operating temperature fixed minimum/maximum value :-40°C/+90°C
Temperature class shift small/large value: -5°C/+70°C;
