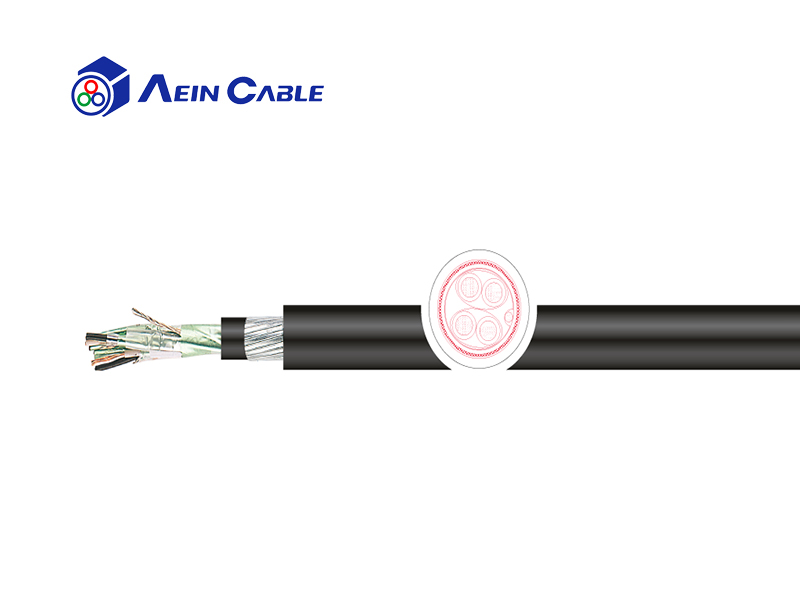

Conductor material:
|
Bare copper strand
|
|
Conductor class:
|
7-wired construction acc.to IEC 60228 cl.2
|
|
Core insulation:
|
XLPE (cross-linked polyethylene)
|
|
Core identification:
|
Pairs pairs: single-coloured with numerals: core A: black, core B: white; triple: single-coloured, core A: white, core B: red, core C: black, core A and C with numerals
|
|
Stranding:
|
Pairs stranded in layers
|
|
Shield:
|
Pairs in metal foil (PiMf) with subjacent tinned drain wire 0.6mm
|
|
Inner sheath material:
|
PVC, black
|
|
Shield3:
|
Galvanized round or flat steel-wires (SWA)
|
|
Outer sheath:
|
PVC
|
|
Sheath colour:
|
Black or blue RAL 5015 for intrinsically safe systems
|
|
Rated voltage:
|
300 V
|
|
Testing voltage:
|
1,5 kV
|
|
Conductor resistance:
|
0.5mm²:max.36.7 Ω/km;0.75mm²:max.25.0 Ω/km;1.3mm²:max.14.2 Ω/km
|
|
Insulation resistance:
|
Min. 5 GΩ x km
|
|
Current-carrying-capacity:
|
Acc. to DIN VDE, s. Techn. Guidelines
|
|
Capacity:
|
Max.115 nF/km
|
|
Inductivity:
|
Ca. 1 mH/km
|
|
Coupling:
|
Max. 500 pF/500 m
|
|
Min. bending radius fixed:
|
10 x d
|
|
Operat. temp. fixed min/max:
|
-40°C / +70°C
|
|
Operat. temp. moved min/max:
|
-5°C / +50°C
|
|
Burning behavior:
|
Self-extinguishing and flame-retardant acc. to IEC 60332-1-2 and IEC 60332-3-24 (Cat. C)
|
|
Resistant to oil:
|
ICEA S-73-532 / NEMA WC 57-2004 § 6.9.3
|
