Product introduction
-
01 Product application
Control and connection cable in tool machinery, conveyor belts, production lines, plant construction, in air-conditioning devices, in metallurgical, steel and rolling mills. For fixed installation and flexible
applications with occasional, not constantly recurring free movement without forced motion, without tensile stress and for medium mechanical stress. The cable is suitable for use in dry, damp and wet locations,
outdoors (fixed installation) and on plaster.
-
02 Product characteristics
resistant to: UV radiation, weathering effects
largely resistant to: oil
for outdoor use
halogen-free
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

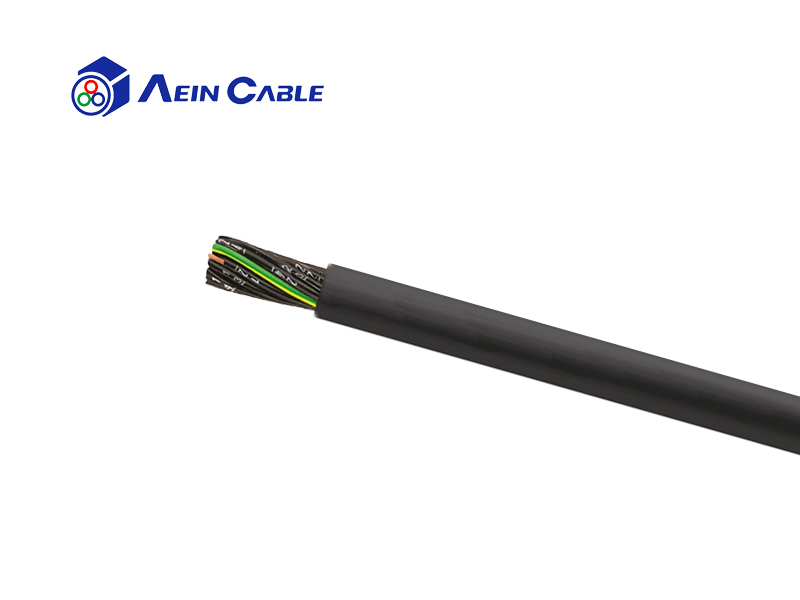

Product structure
Copper wire bare, finely stranded
Core insulation: halogen-free polymer
Core identification: black cores with consecutive labeling in white digits
Protective conductor: starting with 3 cores
Cores stranded in layers with optimal lay lengths
Outer sheath: halogen-free polymer
Sheath colour: black
Length marking: in metres
Temperature range
flexible: -25°C to +70°C
fixed: -40°C to +70°C
Nominal voltage: AC U0/U 600/1000 V
Test voltage core/core: 4000 V
Minimum bending radius
flexible : 15x Outer-Ø
fixed: 7.5x Outer-Ø
