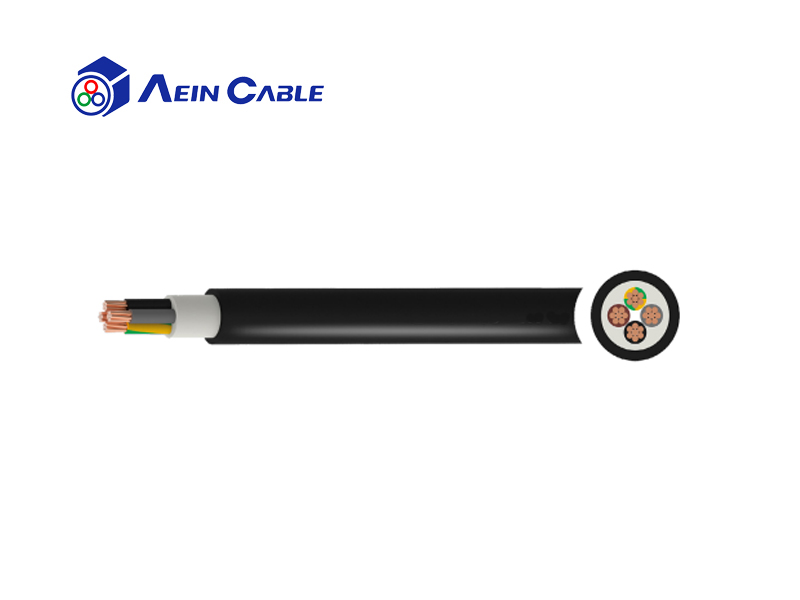

N2XH XLPE Power Cable 0.6/1kV

These power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

Certification : European CE certification

Voltage : 0.6/1KV

Low temperature : —15°C —5°C

High temperature : 90°C 80°C 70°C

Insulation material : Labeled XLPE

Sheath material :

Shielding : Unshield

Installation way : Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

These power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
02 Product characteristics

Voltage Rating Uo/U 0.6/1kV

Temperature Rating Fixed: -30°C to +90°C

Minimum Bending Radius During Installation: 15 x overall diameter

Fixed: 10 x overall diameter
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor

Up to 16mm2: solid copper conductor

Above 16mm2: stranded copper conductor

Insulation: XLPE (Cross-Linked Polyethylene)

Sheath: LSZH (Low Smoke Zero Halogen)

Sheath Colour: Black
