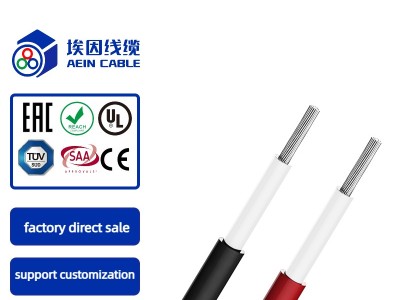

TÜV DC1500V 62930 IEC 131 International and Australian Standard Solar Cable

TÜV DC1500V 62930 IEC 131 International and Australian Standard Solar Cable

Applied to ground/roof/floating PV power plants

Suitable for harsh indoor and outdoor environments after electron beam irradiation


inquiry
  • Product details
Product introduction
  • 01 Product application

    Applied to ground/roof/floating PV power plants Suitable for harsh indoor and outdoor environments after electron beam irradiation

  • 02 Product characteristics

    UV, ozone and hydrolysis resistantHigh temperature resistant, the materials do not melt or flow Good cold flexibility

  • 03 Technical certification

    •DC1500V 62930 IEC131 International and Australian Standard

Product structure

Conductor : Tinned copper class 5 according to EN 60228 and IEC 60228

Insulation: Halogen-free electron beam cross-linked polyolefin copolymer (XLPO)

Sheath: Halogen-free, electron beam cross-linked polyolefin copolymer (XLPO), flame retardant compound

Black / Red

Rated voltage: UO/U 600/1000V (AC), 1500V (DC)

Test voltage: AC 6500 V, 50 Hz, 10 min. (20 °C ± 0.5) or DC 15000 V, 10 min. (20 °C ± 0.5) without interruption

Minimum bending radius fixed : 5D (D: cable diameter)

Temperature rating: -Operating temperature: -40 °C to +90 °C, maximum conductor temperature: 120 °C, 20000 hours.

Fire-resistant performance : EN 60332-1-2

Standard: TÜV/UL//IEC/CE/RoHS


Keywords: American UL certification
