Product introduction
-
01 Product application
These cables are mainly used as flexible feeder trailing cables for power supply to machinery and equipment, include 3 large pilots and a central semiconductive cradle for support and protection of power cores.
-
02 Product characteristics
3.3/3.3kV
Flexible
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

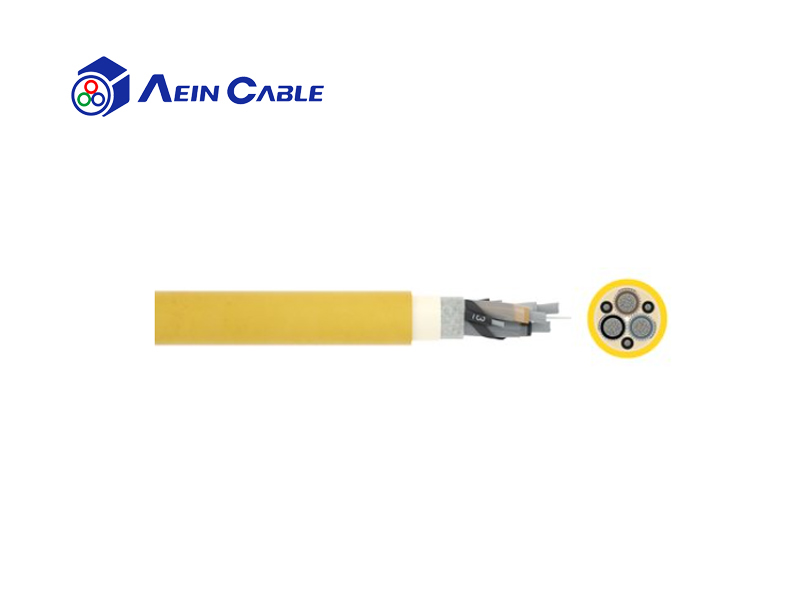

Product structure
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
Insulation: EPR.
Insulation Screen: Semiconductive elastomer.
Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator: Semiconductive PCP.
3×Interstitial Pilot: EPR covered flexible stranded tinned copper conductor.
Sheath: Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.
