Product introduction
-

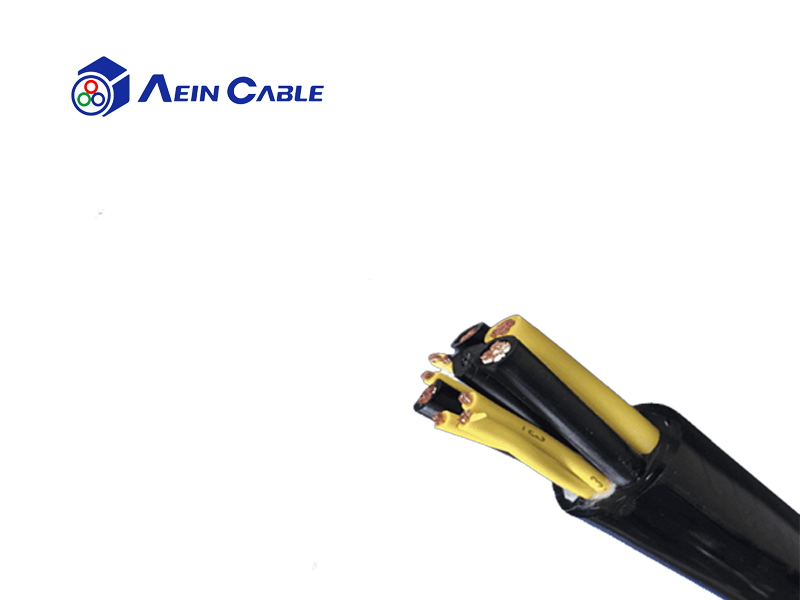

01 Product applicationSAA Australian Standard Certified cable AS/NZS 5000.1 CU X-90 5V-9 is used for power, control and connection cables in power facilities for data and signal transmission.
-
02 Product characteristics •SAA certification
•Flame retardant acc. to IEC 60332-1-2
•Up to 1000 V parallel laying with other cables with identical current voltage is permitted
-
03 Technical certification •Conform to RoHS standard
•Conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
Product structure
Conductor material: bare copper wire
Conductor class: acc. to IEC 60228 cl. 5
Core insulation: XLPE
Core identification: Black core with white number, with or without GNYE
Stranding: stranded in layers
Outer sheath: PVC
Sheath color: black RAL 9005 Or gray RAL 7001
Rated voltage: 450/750V
Testing voltage: 2.5kV
Conductor resistance: acc. to ASNZS1125
Minimum bending radius fixed: 7.5x d
Minimum bending radius moved: 15x d
Operating temperature fixed: -15 °C / +90 °C
Operating temperature fixed: -5 °C / +90 °C
Burning behavior: self-extinguishing, acc. to IEC 60332-1 standard
Standard: AS/NZS 5000.1
Product identification: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO. .LTD Model number specification Rated voltage
Product parameter
