FMGCG Control & Communication Cables

FMGCG Control & Communication Cables

Used as control and communication cables in radio, radar and information systems of marine vehicles. Its’ twisted pairs enables proper transmission of high frequency signals, while its ’ overall screen minimizes environmental electromagnetic interference.

Certification :   European CE certification

Voltage :

Low temperature :   —40°C

High temperature :   90°C

Insulation material :

Sheath material :

Shielding :   Shield

Installation way :

inquiry
  • Product details
Product introduction
  • 01 Product application

    Used as control and communication cables in radio, radar and information systems of marine vehicles. Its’  twisted pairs enables proper transmission of high frequency signals, while its’  overall  screen minimizes environmental electromagnetic interference.

  • 02 Product characteristics

    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A WORKING TEMPERATURE : -40° C / + 90 °CMIN. BENDING RADIUS (FIXED) : 8 x (Overall Diameter) RATED VOLTAGE : 60/250 V TEST VOLTAGE : 1,5 kV

  • 03 Technical certification • Conform to RoHSWe are pleased to produce special versions, other dimensions, core and jacket colours on request.

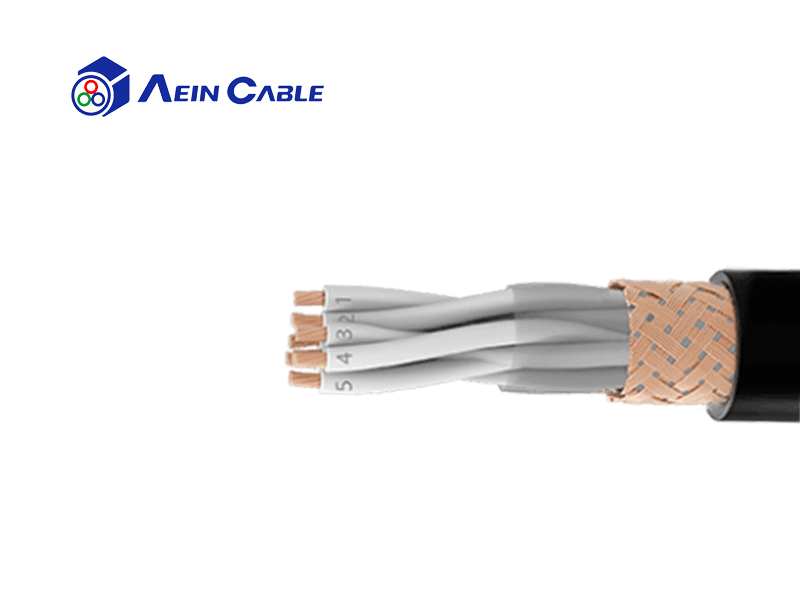

Product structure

CONDUCTOR : Electrolytic, stranded, annealed copper wire.

INSULATION : HF HEPR rubber compound. Color: White (other colors on request).

LAYUP : Cores laid up in pair, pairs laid up concentrically.

SEPARATOR : Separating foil over screen.

SCREEN : Electrolytic copper braided screen (90% coverage).

SEPERATOR : Separating foil above screen.

OUTER SHEATH : Chloroprene based flame retardant and oil resistant black outer jacket.
