Product introduction
-
01 Product application
Used as control and communication cables in radio, radar and information systems of marine vehicles. Its’ twisted pairs enables proper transmission of high frequency signals, while its’ overall screen minimizes environmental electromagnetic
interference.
-
02 Product characteristics
FLAME RETARDATION : IEC 60332 /1, IEC 60332
HALOGEN CONTENT : IEC 60754
WORKING TEMPERATURE : -40°C / + 90°C
MIN. BENDING RADIUS (FIXED) : 8 x (Overall Diameter)
RATED VOLTAGE : 60
/ 250 V
TEST VOLTAGE : 1,5 kV
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

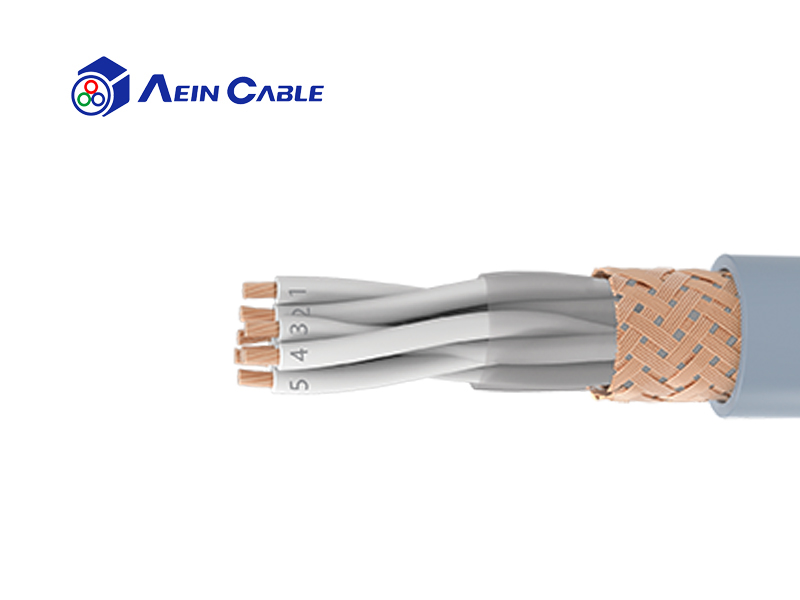

Product structure
CONDUCTOR : Electrolytic, stranded, annealed copper wire
INSULATION : HF HEPR compound.
LAYUP : Cores laid up in pair, pairs laid up concentrically.
SEPERATOR : Separating foil below screen.
SCREEN : Electrolytic copper braided screen. (90% coverage)
OUTER SHEATH : Halogen-free, flame retardant, thermoplastic polyolefin based compound
COLOR: Black or Grey.
