MGCG Fixed Installation Cables

Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles. Due to its’ overall screen the electromagnetic interference is minimized.

Certification : European CE certification

Voltage : 3.6/6KV 0.6/1KV

Low temperature : —5°C —15°C —40°C

High temperature : 70°C 80°C 90°C

Insulation material : Labeled

Sheath material :

Shielding : Shield

Installation way : Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles. Due to its’ overall screen the electromagnetic interference is minimized.
02 Product characteristics

FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
WORKING TEMPERATURE : -40°C / + 90°C
MIN. BENDING RADIUS (FIXED) : 8 x (Overall Diameter)
RATED VOLTAGE : 0,6/1 kV
TEST VOLTAGE : 3,5 kV
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

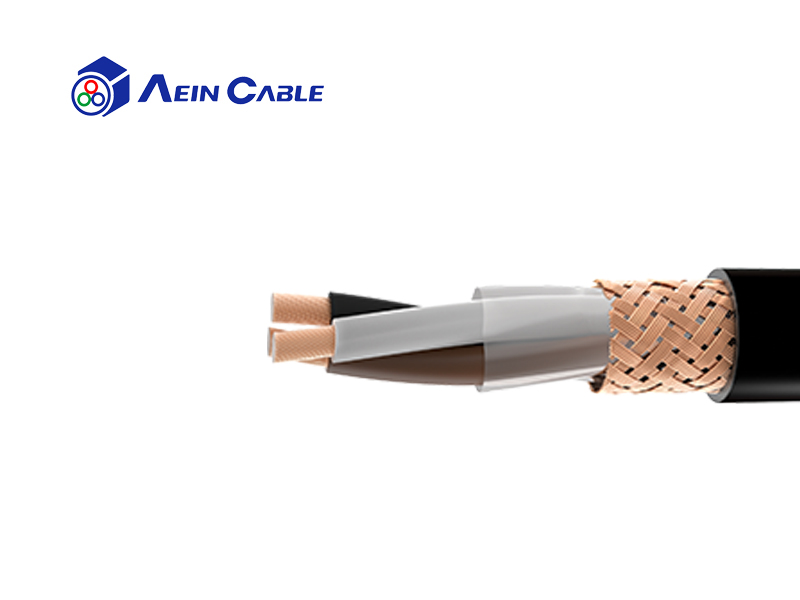

Product structure

CONDUCTOR : Electrolytic, stranded, annealed copper wire.

INSULATION : HF HEPR compound.

BEDDING : Rubber.

SCREEN : Electrolytic copper braided screen (90% coverage). MGCG (EMC) type is wrapped by a copper tape in addition to this braided screen. (100% coverage).

OUTER SHEATH : Chloroprene based flame retardant and oil resistant black outer jacket.
