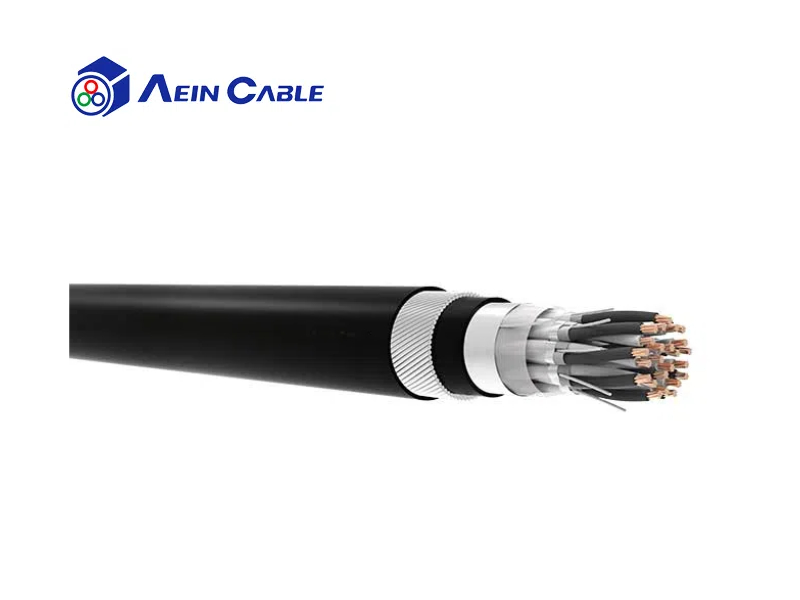

Conductor material: bare copper wire
Conductor type :IEC 60228 Class 1 solid annealed copper conductor or Class 2 multi-strand plain copper conductor
Core wire insulation :XLPE
Core cable identification: black, white, and red. The cables in the three-wire group are continuously identified by numbers (1,2,,,,) on the white core.
Black/white, pairs of cables are continuously identified by numbers (1,2,,,,) on the white core
Pairs :2 or 3 insulated wire cores are twisted together to form pairs.
Stranding: three-wire group or pair group to lay the synthetic layer.
Separate shielding: The foil/plastic film with 0.5mm² tinned copper distribution wire is wrapped in the outer layer of the triplet group or the pair group
Stranding: three wire group or pair stranding group to lay the synthetic layer.
Total shielding: Aluminum strip/polyester strip shield with 0.5mm² tinned copper drain line.
Inner sheath :LSZH composite
Armouring :EN 10257-1 galvanized steel wire armouring.
Outer sheath :LSZH composite
Jacket color: black RAL 9005 or blue
Rated voltage :300/300V
Test voltage: 1.5kV
Conductor resistance: According to IEC 60228 standard
Small bending radius fixed :10xd
Small bending radius movement :18xd
Fixed temperature rating :-30°C/+90°C
Temperature rating shift :-5°C/+90°C
Flame retardant rating: IEC 60332-1-2
Standard :BS EN 50288-7 standard
Product identification :Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
