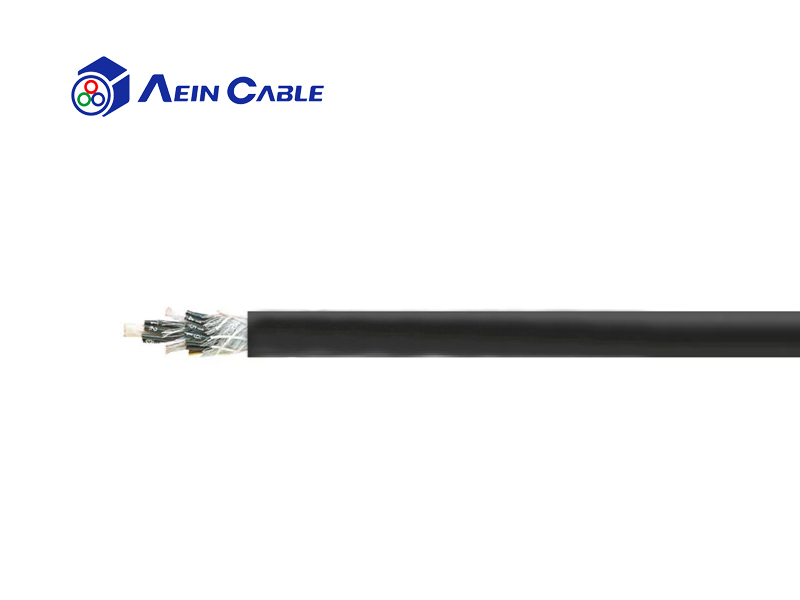

TRAGO Lift and Hoist Control Cables 300/500 V

Lift hoist control cables with strain bearing element Special PVC-compound for core and sheath．The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers．

Certification : European CE certification

Voltage : 300V 500V 1.8/3KV 3.6/6KV

Low temperature : —5°C —15°C —40°C

High temperature : 80°C 70°C 90°C 105°C 125°C 150°C

Insulation material : Labeled PVC

Sheath material : PVC

Shielding : Unshield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

Lift hoist control cables with strain bearing element Special PVC-compound for core and sheath．The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to　the wetting properties of lacquers．
02 Product characteristics

UV-resistant Tests

PVC self-extinguishing and flame retardant
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Bare copper-conductor

Core insualtion of special PVC

Cores stranded in layers with optimal lay-length

Multi-layer wrapping functioning as a support braid

Outer sheath of special PVC

Sheath colour black

Temperature range flexing - 15°C to +70°C

fixed installation -40°C to +70°C

Max. conductor temperature

under load +70°C

circuit conditions +150°C

Nominal voltage U0/U 300/500 V

Test voltage 3000 V

Breakdown voltage min. 6000 V

Minimum bending radius 20x cable Ø
